MIyoshi Kikai Standard Type Industrial Universal Joints Strong Type BD

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Port Osaka

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Japan		Model Number	BD004
Brand Name	MIYOSHI KIKAI

Product Description

Specifications

Miyoshi Kikai Standard Type Universal Joint Strong Type BD
High Quality Universal Joint Made In Japan

Strong Type BD

High Torque, Conventional Use Material S45CC

A hole for a spring-pin attached should be machined together with a shaft at a location of l/2.

Use a boot and oil pack to extend the life of joint.

Designate new JIS or old JIS for key, when the type of shaft-hole shape is B or T.

A spring-pin is not attached for a joint with a key way.

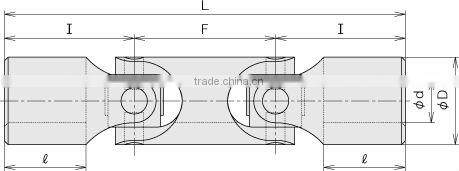

Type BD Dimension Table

	φd^H7	φD	L	l	Ⅰ	F	New JIS key		Old JIS key		TAP M	Dimension of spring-pin for fixing	Swing of the center	Mass kg	Max. revolution min^-1	Max. transmission torque capacity Nm
	φd^H7	φD	L	l	Ⅰ	F	a^Js9	b	a^Js9	b	TAP M	Dimension of spring-pin for fixing	Swing of the center	Mass kg	Max. revolution min^-1	Max. transmission torque capacity Nm
BD-6	6	12	75	18	25	25	2	1.0	2	1.0	M3	2×12	0.10	0.05	1300	6
BD-8	8	16	86	19	28	30	3	1.4	3	1.5	M3	2.5×16	0.10	0.09	1100	14
BD-10	10	20	102	23	34	34	3	1.4	4	1.5	M4	3×20	0.14	0.17	950	26
BD-12	12	24	125	29	42	41	4	1.8	4	1.5	M4	4×25	0.14	0.30	780	44
BD-14	14	28	143	31.5	47	49	5	2.3	5	2.0	M5	5×28	0.14	0.45	680	70
BD-16	16	32	158	34.5	52	54	5	2.3	5	2.0	M5	5×32	0.14	0.66	600	98
BD-18	18	36	180	40	60	60	6	2.8	5	2.0	M6	6×35	0.20	0.93	530	147
BD-20	20	40	188	40	62	64	6	2.8	5	2.0	M6	6×40	0.20	1.23	480	196
BD-22	22	44	200	41	65	70	6	2.8	7	3.0	M8	6×45	0.20	1.57	430	265
BD-25	25	50	220	43	70	80	8	3.3	7	3.0	M8	8×50	0.20	2.22	390	392
BD-30	30	60	275	56	89	97	8	3.3	7	3.0	M8	10×60	0.25	4.15	310	588
BD-35	35	70	310	62	100	110	10	3.3	10	3.5	M10	10×70	0.25	6.45	270	941
BD-40	40	80	350	70	114	122	12	3.3	10	3.5	M10	10×80	0.25	9.41	230	1422
BD-45	45	90	390	76	125	140	14	3.8	12	3.5	M10	12×90	0.25	13.32	210	2010
BD-50	50	100	426	80	135	156	14	3.8	12	3.5	M12	12×100	0.25	17.90	190	2648
BD-60	60	120	485	84	150	185	18	4.4	15	5.0	M12	13×120	0.25	29.28	160	4511
