MIyoshi Kikai Standard Type Ball Joint Strong Type B

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Japan		Model Number	B-8
Brand Name	MIYOSHI KIKAI

MIyoshi Kikai Standard Type Ball Joint Strong Type B

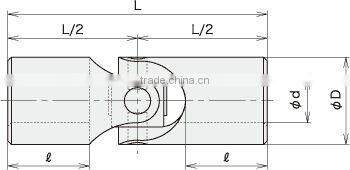

Type B Dimension Table

	φd^H7	φD	L	l	New JIS key		Old JIS key		TAP M	Dimension of spring-pin for fixing	Swing of the center	Mass kg	Max. revolution min^-1	Max. transmission torque capacity Nm
	φd^H7	φD	L	l	a^Js9	b	a^Js9	b	TAP M	Dimension of spring-pin for fixing	Swing of the center	Mass kg	Max. revolution min^-1	Max. transmission torque capacity Nm
B-06	6	12	50	18	2	1.0	2	1.0	M3	2×12	0.10	0.03	1700	8
B-08	8	16	56	19	3	1.4	3	1.5	M3	2.5×16	0.10	0.06	1500	18
B-10	10	20	68	23	3	1.4	4	1.5	M4	3×20	0.14	0.11	1300	31
B-12	12	24	84	29	4	1.8	4	1.5	M4	4×25	0.14	0.20	1100	55
B-14	14	28	94	31.5	5	2.3	5	2.0	M5	5×28	0.14	0.31	950	88
B-16	16	32	104	34.5	5	2.3	5	2.0	M5	5×32	0.14	0.45	830	127
B-18	18	36	120	40	6	2.8	5	2.0	M6	6×35	0.20	0.65	750	186
B-20	20	40	124	40	6	2.8	5	2.0	M6	6×40	0.20	0.82	670	245
B-22	22	44	130	41	6	2.8	7	3.0	M8	6×45	0.20	1.06	600	333
B-25	25	50	140	43	8	3.3	7	3.0	M8	8×50	0.20	1.44	530	490
B-30	30	60	178	56	8	3.3	7	3.0	M8	10×60	0.25	2.74	440	736
B-35	35	70	200	62	10	3.3	10	3.5	M10	10×70	0.25	4.26	380	1177
B-40	40	80	228	70	12	3.3	10	3.5	M10	10×80	0.25	6.20	330	1765
B-45	45	90	250	76	14	3.8	12	3.5	M10	12×90	0.25	8.61	300	2550
B-50	50	100	270	80	14	3.8	12	3.5	M12	12×100	0.25	11.45	260	3334
B-60	60	120	300	84	18	4.4	15	5.0	M12	13×120	0.25	18.24	220	5688
