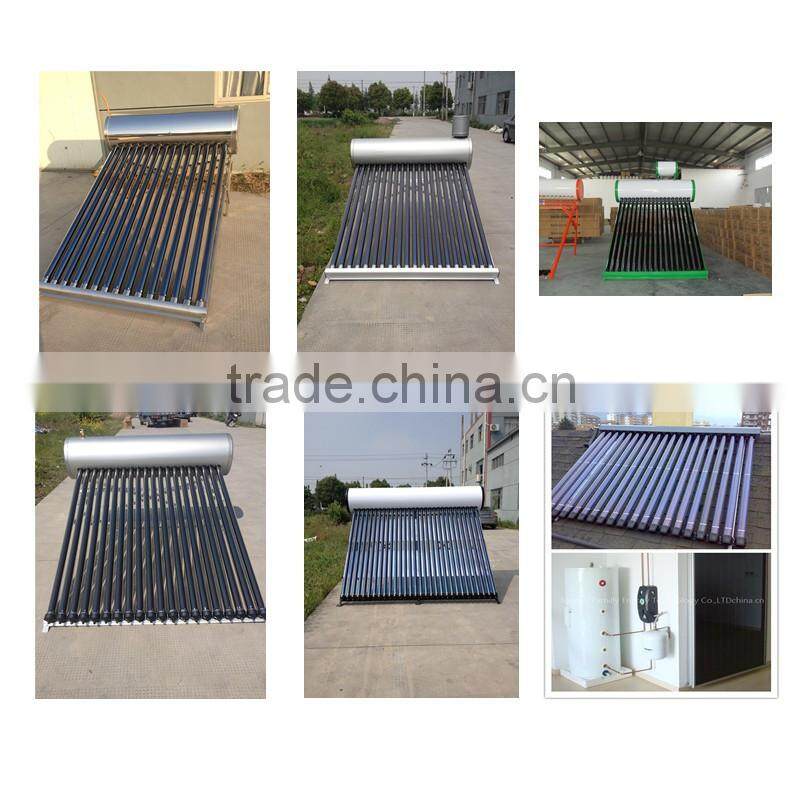

2015 Separate Pressurized Solar Water Heater

2015 Separate pressurized solar water heater

1) The operation of the solar collector is very simple.
2) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat.
3) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the header pipe
4) Solar energy storage: water is circulated through the header, via intermittent pump cycling. Each time the water circulates through the header, the temperatures is raised by 5-10 C. Throughout the day, the water in the tank is gradually heated

Specifications

1. Manifold (interior) material: red copper

2. Manifold (exterior) material: aluminum alloy

3. Tube dimensions: 58 x 1.800 mm / 47 x 1.500 mm

4. Vacuum tube coating material: AL-N-AL or AIN-SS-Cu

5. Insulation layer:  rock wool

6. Pressure bearing: 6Bar=0.6MPa

7. Hail resistance: 25mm

8. The standards of vacuum tubes with heat pipe: 14, 16, 18, 20, 24, 30 tubes .

9.Water capacity: 150L, 200L, 250L, 300L, 500L
10.Daily efficiency: >= 55%(>=42% in winter)
11. Heat preservation: 72h to 80h
12. Electric heater: 1.5Kw to 3Kw

Warranty :
5 years' International responsibility for free repairing or exchange due to original quality problem
Remark :
a) We offer  2% vacuum tubes for free for exchange in case several shattered vacuum tubes during transit
b) About the following accessories, if you need, we can offer it toyou,  Butshould charge it.

We Design, Manufacture and deliver the sun’s unlimited and cheapest energy to your daily life.OU’SUN Solar Energy Technology Co., Ltd, With more than 10 years development and technology bring in, Products are acceptable and popular in foreigner country with serious quality control, on time delivery and good export service.

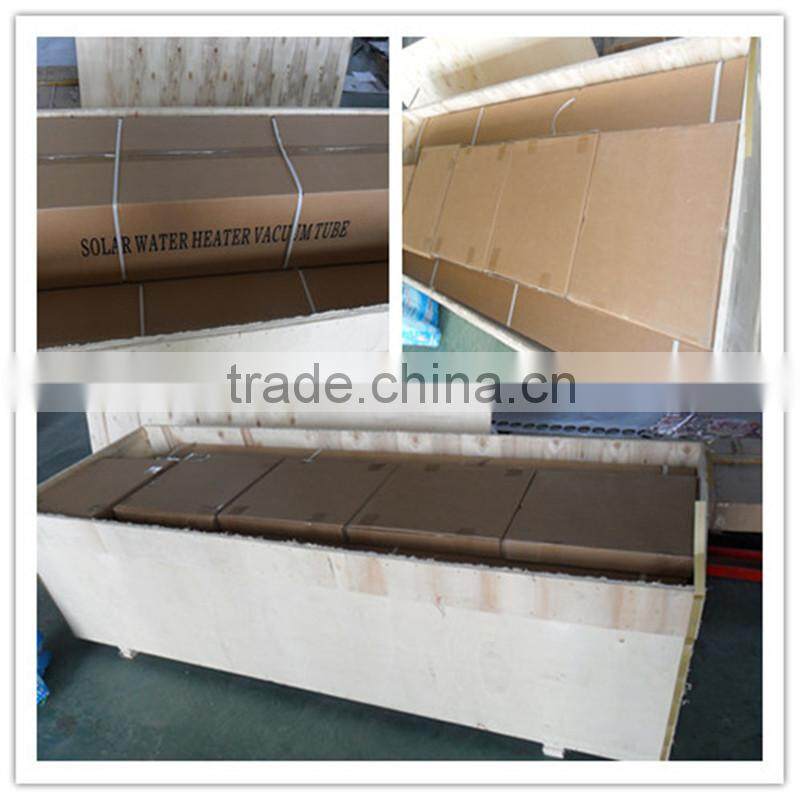

Sample order: we will use wooden box for package.

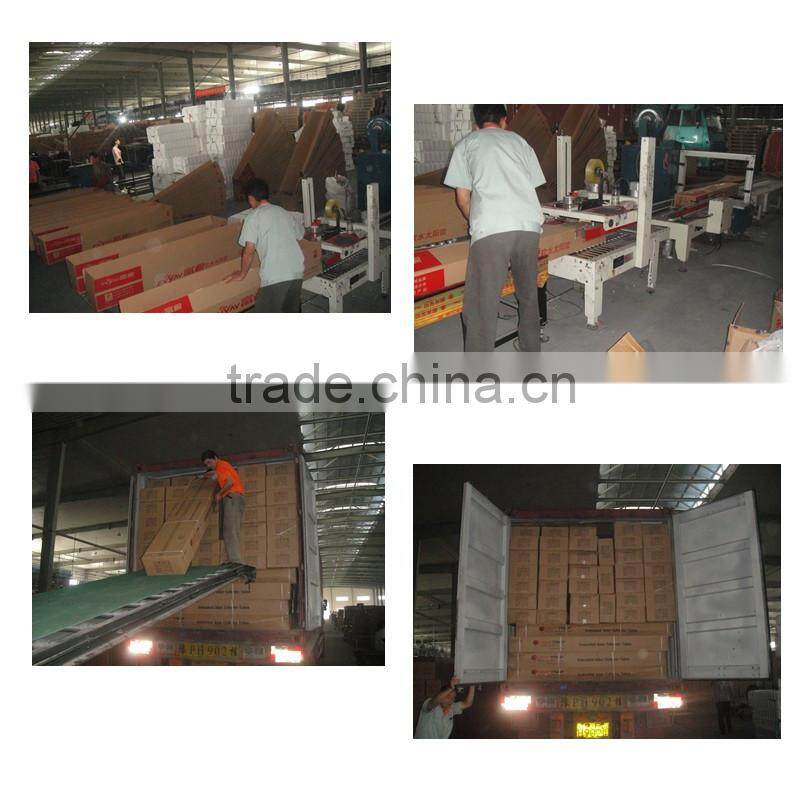

Container order: We will use high quality export carton for package.
