Heat Pipe Solar Vacuum Tube
- Ningbo/Shanghai
 - T/T Credit Card

You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OU'SUN | |
| Model Number | OS-58*1800mm | Type | Pressurized | |
| Application | Solar Thermal | Pipe Material | Glass |
Product Description
Specifications
Heat pipe solar vacuum tube1.three targe coating film
2.For 15years warranty.
3.high efficient!
4.Different size!

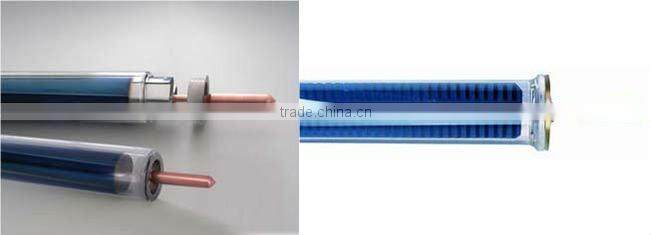

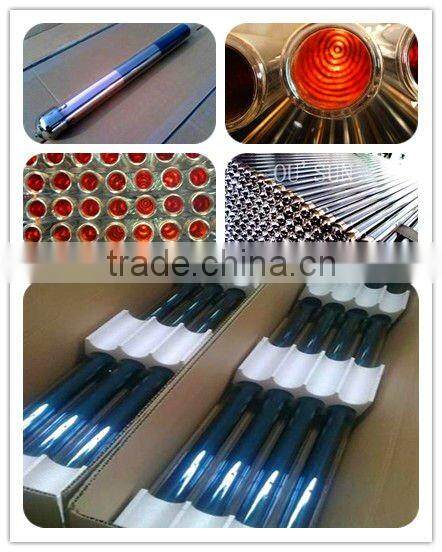

heap pipe solar vacuum tube details
how the solar vacuum tube works
1) Copper heat pipe and inner medium for thermal transmission, with a quick start up and super efficiency.
2) No water flows into vacuum tubes, system works well with with-drawal o fone or several heat pipe vacuum tubes.
3) Super efficiency of insulation with polyurethane foam; No vent with less heat loss as compared to nonperssurized type.
4) Withstand pressure more than 6 Bar, can be connected directly with tap water, more safe system and comfortable water use.
5) Can be used all year round even works well in extremely cold climate.
6) Can be equipped with auxiliary electric booster and intelligent controller for automatically control.
7) Long lifespan, can be of good service more than 15 years
Solar vacuum tube Specification
Iterms  | Size  | Capacity(L)  | Absorb area(m2)  | 20GP/40GP loading qty(pc)  |
solar vacuum tube  | 47*1200  | 1.29  | 0.07  | 4200 / 8960  |
47*1450  | 1.56  | 0.08  | 3360 / 7280  | |
47*1500  | 1.61  | 0.09  | 3360 / 7140  | |
47*1600  | 1.72  | 0.09  | 3220 / 6860  | |
47*1800  | 1.93  | 0.10  | 2940 / 6020  | |
58*1200  | 2.17  | 0.90  | 3000 / 6480  | |
58*1500  | 2.71  | 0.11  | 2400 / 5280  | |
58*1600  | 2.89  | 0.12  | 2280 / 5040  | |
58*1650  | 2.98  | 0.12  | 2280 / 4800  | |
58*1700  | 3.07  | 0.13  | 2280 / 4680  | |
58*1750  | 3.17  | 0.13  | 2160 / 4560  | |
58*1800  | 3.26  | 0.14  | 2160 / 4440  | |
58*1900  | 3.44  | 0.14  | 1920 / 4200  | |
58*2000  | 3.62  | 0.15  | 1920 / 4080  | |
58*2100  | 3.80  | 0.16  | 1920 / 3960  | |
70*1800  | 5.09  | 0.17  | 1500 / 3000  | |
70*2000  | 5.65  | 0.19  | 1300 / 2800  | |
70*2100  | 5.93  | 0.20  | 1300 / 2800  |

  |
  |
  | |||||||||||||||||||||||||||||||||||||||||
