2012 The Best Solar Water Heater 100Liter

FOB Price

US$ 60 - 300 / Set

10 Sets(Min. Order)

Port shanghai/ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Unpressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Batch / ICS (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Other, Color Steel	Certification	Other, RoHS
Capacity	100, 80L-400L	Place of Origin	Zhejiang, China
Brand Name	OU'SUN/OEM	Model Number	OS-UP-T87

Product Description

Specifications

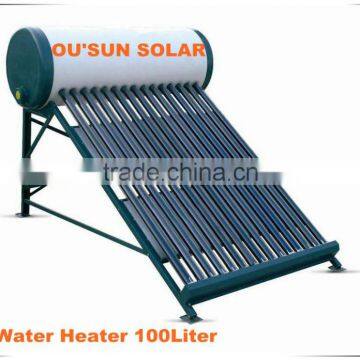

Water Heater 100Liter
1.For 5 years warranty
2.For 2% free spare parts
3.Sample offer
4.OEM service

Working Principle Of Water Heater 100Liter: This system uses the thermosiphon principle, Solar vacuum tube is pluged into the bottom of water tank,

The water is filled inside the solar vacuum tube, Solar vacuum tube transmit solar energy to heat energy,

The temperature of water inside solar vacuum tube is rising, As the thermosiphon principle,

the hot water rise up, and arrive in the water tank, the cold water inside the water tank go down the solar vacuum tube,

so the system runs by this circulation way until the water become very hot. It's a green product.

Specification:

1. Water tank inner steel: 0.4~0.5mm SUS304-2B (food grade stainless steel).

2. Water tank outer steel: 0.4mm colored steel or 0.4 mm SUS304-2B.

3. Stand: galvanized steel with painting, or aluminium alloy, or stainless steel.

4. Water tank heat insulation layer: 50~60 mm polyurethane foam.

5. Stand angle: 15 degree, 20 degree, 25 degree, 30 degree, 38 degree, 45 degree, 51 degree

Model	Ligthing (m2)	Vacuum Tube			Supply hot water(L/D)	20/40" container
Model	Ligthing (m2)	diameter	length	No.	Supply hot water(L/D)	20/40" container
IPJG420-1500/47-12	1.26	Ø47mm	1500mm	12	70	90/205
IPJG420-1500/47-18	1.80			18	100	63/147
IPJG420-1500/47-24	2.49			24	130	50/116
IPJG420-1500/47-30	3.15			30	160	38/89
IPJG470-1500/47-12	1.26	Ø47mm	1500mm	12	90	78/176
IPJG470-1500/47-18	1.80			18	130	62/136
IPJG470-1500/47-24	2.49			24	168	51/108
IPJG470-1500/47-30	3.15			30	210	42/90
IPJG470-1800/58-12	1.68	Ø58mm	1800mm	12	100	66/146
IPJG470-1800/58-18	2.57			18	150	48/110
IPJG470-1800/58-24	3.40			24	200	32/76
IPJG470-1800/58-30	4.32			30	250	26/63

Product Show:
