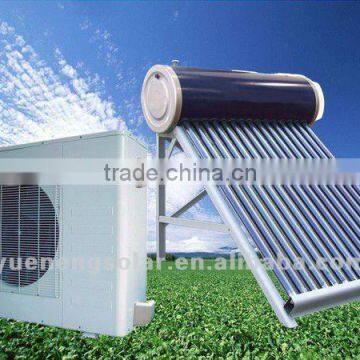

On Sale New air source heat pump combination solar heater system Quality Choice
- Shanghai/Ningbo
- T/T Credit Card
You May Like
-
On Sale New air source heat pump hybrid solar water heater
-
On Sale New air source heat pump solar water heater
-
100L air source heat pump water heater
-
High Quality Pressurized Flat Panel Solar Water Heater
-
Hot sale compact heat pipe solar heater collector
-
Compact Pressurized Solar Water Heater For Brazil
Product Details
| Type | Other, air source heat pipe | Pressure | Pressurized | |
| Circulation Type | Indirect / Closed Loop (Active) | Heating System | Thermosyphon (Passive) | |
| Connection Type | Direct-Plug | Installation | Freestanding | |
| Housing Material | Other, color steel | Certification | CE, Other, CE, RoHS | |
| Capacity | 150 | Place of Origin | Zhejiang, China | |
| Brand Name | OUSUN/OEM | Model Number | OSHS-A02 |
Product Description
Specifications
heat pump combination solar heater system :1. 5 years warranty.
2. sample offer
3. 2% spare parts
4. OEM service
heat pump combination solar heater system:
Solar heater, solar water heaters, solar water heater system, heat pump, solar geyser
Features:
1.High efficiency:Brand commpressor on heat pump ,COP is bewteen 350%—450%.
2.Energy saving:Save 77% compared with electrical heater ,and save 94.2% compared with fuel heater.
3.Safe: Separate water and electric completely,avoid electrical leakage thoroughly.
4.Convenient:Double guarantee to supply hot water during 24H in all weather .
5.Intelligent:Automatically start up and stop with setting time and temperature.
Working principle:
When weather is fine, the heater will adequately absorb sunshine to produce hot water for free. And once no
sunlight, the machine will keep working rely on air-source heat pump to produce hot water: firstly heat pump
will absorb low-grade air ,after work by compressor then transfer these into high-grade air ,finally this high-grade air has been released into water to make cool water into hot for customer use.
This working system can continuously guarantee customer hot water during 24H without any interrupts.
Specification:
Model | Unit | OSHS-A01 | OSHS-A02 | OSHS-A03 | OSHS-A04 | |||||
Heating Capacity | kW | 10.8 | 14.4 | 18 | 21.6 | |||||
Power Input | kW | 2.7 | 3.6 | 4.5 | 5.4 | |||||
Rated Current | A | 12.2 | 16.2 | 20.25 | 10.8 | |||||
Largest Input | kW | 3.6 | 4.9 | 6.1 | 7.3 | |||||
Largest Current | A | 16.2 | 21.6 | 27 | 14.4 | |||||
Rated Water Temp. | °C | 55 | 55 | 55 | 55 | |||||
Highest Water Temp. | °C | 60 | 60 | 60 | 60 | |||||
Power Supply | 220V/1P/50Hz | 380V/3P/50Hz | ||||||||
Compressor |
| Rotary | Scroll | |||||||
Fan Power Input | W | 150 | 230 | 330 | 150*2 | |||||
Fan Rotate Speed | RPM | 900 | 920 | 910 | 900 | |||||
Refrigerant |
| R407c | R407c | R407c | R407c | |||||
Ambient temp. | °C | -7-43 | -7-43 | -7-43 | -7-43 | |||||
Hot Water Supply | L/H | 232 | 310 | 387 | 464 | |||||
Circulation of Water Capacity | M3/h | 3 | 4 | 5 | 6 | |||||
Pressure from Tap Water | kPa | 46 | 46 | 46 | 46 | |||||
Mainframe Weight | kg | 100 | 130 | 180 | 200 | |||||
Running conditions: Ambient temperature DB(dry bulb) 20 °C,WB(wet bulb)15°C,water input at 15°C. | ||||||||||
Picture Display:
