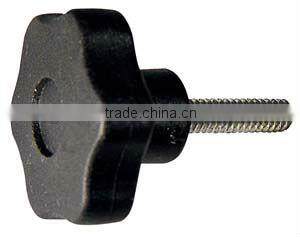

Black Plastic Knob Studded Six-Lobe HG-K-0009

FOB Price

US$ 0.5 - 5 / Piece

500 Pieces(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	HYGOAL
Model Number	HG-K-0009	Material	Other, Steel or Stainless Stud
Usage	Cabinet, Drawer, Dresser, Wardrobe, Other, Cabinet, Drawer, Dresser, Wardrobe, industry use

Product Description

Specifications

M6-M12 are available
Black Thermoplastic
Six Lobed Plated black plastic Knob
Steel or Stainless Stud black plastic Knob

Studded Thermoplastic Six-Lobe Knob HG-K-0009

Black Thermoplastic

Six Lobed Plated

Plated Steel or Stainless Stud

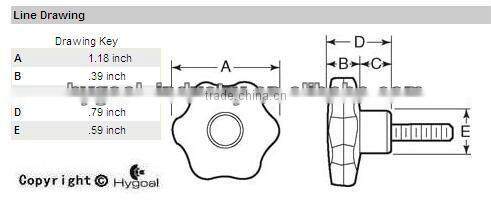

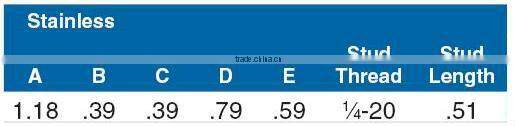

Inch

Base Diameter	.59 inch
Base Height	.39 inch
Color	Black
Grip Height	.39 inch
Measurement System	inch
Knob Diameter	1.18 inch
Knob Material	Thermoplastic
Mount Type	Threaded Stud
Number Of Lobes	6
Overall Knob Height	.79 inch
Stud Length	.51 inch
Stud Thread Size	1/4-20
Stud/Insert Material	Stainless Steel
Type	SKU

Custom Manufacturing:

Except these standard productsWe also supply customized sulotions or OEM according to your sample or drawings.

Hygoal Components manufactures a diverse range of custom plastic and metal products at extremely competitive costs - all from our facilities in Ningbo, China. Our teams have over a decade of manufacturing and supply chain management experience. From design concept, to sample creation, mass production and shipping. And we ensure your product arrives on spec, on time and on budget.

With the technical capability to rival all manufacturing facilities. We have the knowledge, experience and manufacturing capabilities to meet all of your requirement in customized solutions . For details of Hygoal's manufacturing procedure, please see our custom manufacturing overview page or contact with us.

Hygoal's Custom Manufacturing procedure:

Submit a technical drawing or post a sample »
Use our enquiry form to send us a technical drawing of your product along with a description and the estimated quantity you require. If you do not have a technical drawing in most cases we can also reverse engineer from a sample.

48hr quote from Hygoal sales team »
We leverage the very latest technology and communications tools to unite our global teams. We understand the importance of fluid and responsive interactions between all aspects of the manufacturing process, from factory and quality control to shipping and distribution. Submit a technical drawing today and we'll quote in just 48 hours.

High quality rapid tooling »
Upon quote approval and receipt of your deposit payment, we begin fabrication of your tooling. When only a small number of parts are required, tooling can represent a large proportion of initial cost, but we are confident that our tooling costs will not be beaten. When a greater quantity of parts are produced the relative cost of tooling shrinks dramatically.

Samples to your door in 35 - 40 days »
The next step sees the first samples off the production line, and delivery to your door - but not before they've passed our meticulous quality control checks. We pride ourselves on getting the job done right the first time; we've worked successfully with countless companies whom require a manufacturing partner capable of keeping to close tolerances throughout production. If adjustments do need to be made, we'll perform them quickly and efficiently.

Mass production in 4 weeks from sample approval »
With injection moulding and die casting machines from 15 tonnes up to 3000 tonnes, you can be sure that we're ready for mass production. Our engineers are fastidious in their attention to detail; its imperative for both customer and manufacturer that the goods are on spec; you won't accept second rate products - we won't produce them.

Packaged, labelled and shipped to your door in 10 weeks from sample approval »
We understand our customers require much more than just first rate products, they need them securely packed and shipped to their destination on time. Our supply chain has been in successfull operation for over a decade, we'll even manage and monitor all customs, handling fees and insurance.
