Adjustable Foot HG-L-0066

Specifications

Adjustable feet, leveling feet, furniture feet, Adjustable furniture feet, adjustable foot HG-L-0066.

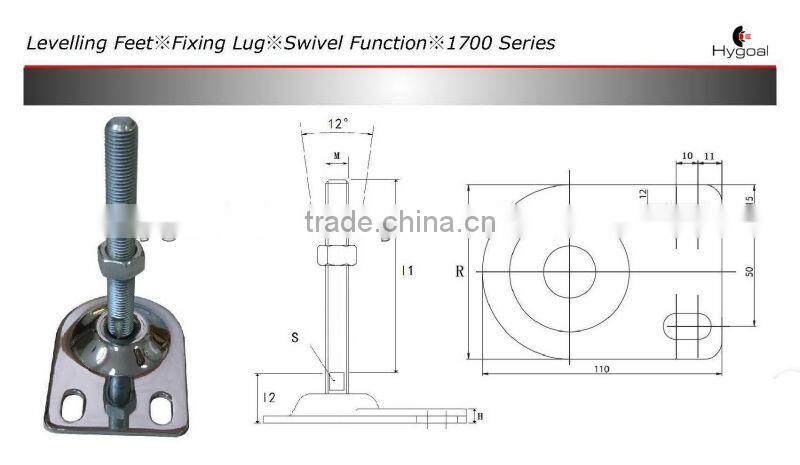

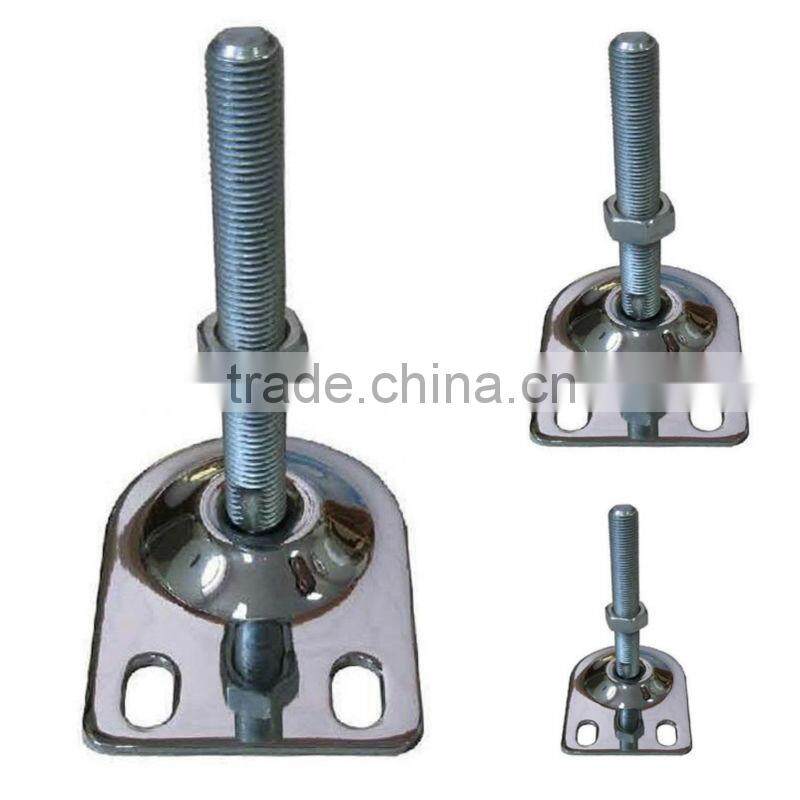

The leveling feet 1700 series is specially designed for heavier load applications such as lathe and CNC. The maximum load can be up to about 3000kg.It has a fixing lug. This type is specially designed for machine feet, furniture legs and some apparatus which have to be used in unsmooth floor and have to endure heavy duty.

The thread size is from M16 to M24 and the length of thread can be customized to order.

The diameter of the base is Φ80mm.

lThe leveling feet 1700 series has a ball joint so it allows the bolt swivel up to about 12° in any directions.

lWith fixing lug.

lStainless steel base+stainless steel bolt ,Chrome plated steel base+zinc plated steel bolt.

lMaterial for base: Steel with chrome plated or Stainless steel 304.

lMaterial for bolt: Steel #45 with Zinc plated code No.ST; Stainless Steel 304 code No. SS.

lThe thread size l1 can be tailor made according to your special requirements.

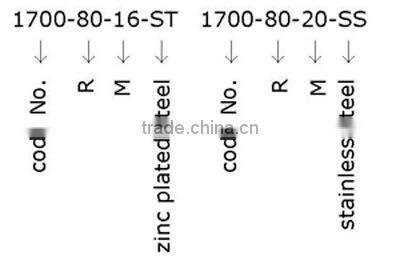

Part number explanation:
