Product Details
| Place of Origin | China | Brand Name | ROADSKY Road Stud For Tunnel | |
| Model Number | Road Stud For Tunnel |
Product Description
Steady Flashing Rectangle Glowing In The Dark Road Stud For Tunnel
1.Description
The wired tunnel road stud is designed to be applied to tunnel , chunnel, and etc.
It is a kind of clear, eye-catching and guided mark, the continuous arrangement of wired tunnel road studs form a lighting line, both have warning effect and decorative effect.
2. Features
1. The LED takes less energy and low cost.
2. It has excellent warning function, as the high brightness imported LED.
3. Long lifespan of LEDs, up to 100,000hours.
4. Stable and durable. The insulating protection has passed high voltage test.
3. Different materials of wired tunnel road studs
3.1 Pc & ASA fireproof wired tunnel road studs
3.1.1 Specification
Size | 105mm*100mm*20mm,128*90*25,122mm*25mm,or customized | |
Weight | 0.2kg, 0.25kg and 0.35kg | |
LED | Size | 5 mm |
Quantity | 3pcs, 6pcs/side or customized | |
Color | Red, yellow, blue, green, white or customized | |
Working power consumption | 0.06w/pc | |
Light intensity | >6,000MCD | |
Working mode | Steady | |
Flashing:30~300times/min(adjustable) | ||
Color Ra index | ≥85 | |
Voltage | DC12V~24V; AC110V~220V | |
Working temperature | -40~85℃ | |
Waterproof | IP68 | |
Visibility | >1000m | |
Pressure resistance | >20ton | |
Cable length | 50~100cm | |
Life span | 7~10years | |
3.1.2 Products show
Size1: 105mm*100mm*20mm, weight: 0.2kg

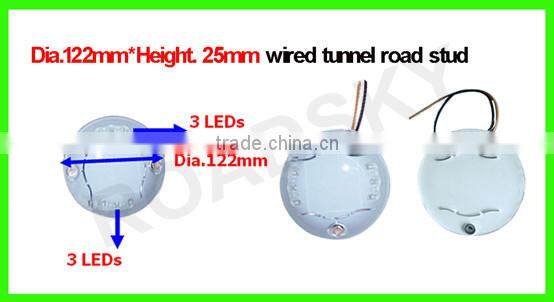

Size2: Dia.122mm*Height.25mm, weight: 0.25kg
3.2 Aluminum alloy wired tunnel road studs
3.2.1 Specification
Size (L*W*H,Dia.H) | 108mm*100mm*20mm 160mm* 57mm or customized | |
Weight | 0.4kg, 2.2kg | |
LED | Size | 5 mm |
Quantity | 3pcs, 6pcs/side or customized | |
Color | Red, yellow, blue, green, white or customized | |
Working power consumption | 0.06w/pc, 1w/pc | |
Light intensity | >8000MCD | |
Working mode | Steady | |
Flashing:30~300times/min(adjustable) | ||
Color Ra index | ≥85 | |
Voltage | DC12V~24V; AC110V~220V | |
Working temperature | -40~85°C | |
Waterproof | IP68 | |
Visibility | >1000m or 2000m | |
Pressure resistance | >20ton | |
Cable length | 50~100cm | |
Life span | 7~10years | |
3.2.2 Products show
Size1: 108mm*100mm*20mm, weight: 0.4kg
4. Wired tunnel road studs in darkness
5. The controller of wired tunnel road studs
Name | Tunnel LED induction system controller |
Size(L*W*H) | 320mm*270mm*100mm |
Material | Metal plate |
Input voltage | AC85v-265v, 50Hz |
Output voltage | DC24v |
Load ability | 100pcs |
Operating method | Flash frequency, brightness, duty cycle, continual light and switch off |
Frequency | 30~300times/min(adjustable) |
Control mode | Local control, PLC control or customized |
Working temperature | -30~60℃ |
Fixed method | Hanging or laying flat |
6.Packaging & shipping
7. Payment
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal, Escrow , and etc.
8. Our projects
