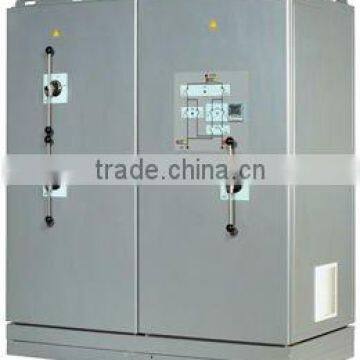

Automatic Transfer Switch up to 3200Amp

Specifications

• Automatic Transfer Switching between 2 sources for reliability of the power supply.
• By-Pass Single Line & Double Line of the Automatic Transfer Switch in order to insure continuity of the supplies during
inspection, test and maintenance.
• Complete isolation of the Automatic Transfer Switch for safe exploitation.
• The association of an ATYS 6 along with a remote interface ATyS D20, will enable an easy configuration, exploitation and
visualization of the data shown on the front of the equipment (timers settings, hysterisis, start/stop of the genset…).
• Different optional accessories are available.
Conformity to standards for equipment

IEC 60439-1
IEC 60529

General characteristics
• From 40 to 3200A, 4 poles (fully rated).
• 230/400 VAC +/- 20%, 50/60 Hz, self supplied from incoming sources.
• Normal/Emergency logic control
sequence.
• Three phase voltage and frequency
control on source I and II.
• Control of phase rotation.
• 1 configurable contact output relay for
generator start/stop command.
• Position I,0,II control by external dry contact.
• Manual emergency operation.
• Auxiliary contacts.
• JBus/Modbus Communication (as standard).
• AUTO / MANU selector.
• Protection degree: IP41
(except with ATyS D20: IP21)
• Hinged door, double bar locking system.
• Wall mounting brackets delivered up to 125 A.
• Floor standing feet from 250 to 3200 A.
• Withdrawable ATS from 250 to 3200 A.
• Phase identification.
• Functional/mimic diagram (indicating LED as
an option).
• Complete protection against direct
contact on each functional unit.
• Steel enclosure
• Colour: Grey Toyo.
Conformity to
standards for
integrated products
‹
IEC 60947-6-1
GB 14048-11
IEC 60947-3
