Home > Products > Electric Chain Hoist > Website Product 1ton 3m Electric Lift Motor Lifting Hoist

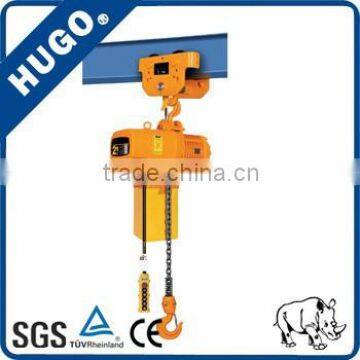

Website Product 1ton 3m Electric Lift Motor Lifting Hoist
- Tianjin Port Shanghai Port Ningbo Port or any port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | HUGO | Model Number | HSY | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Chain | Maximum Lifting Weight | 1 ton | |
| Maximum Lifting Height | 3 M | Lift Speed | 6.8 m/min | |
| Certification | TUV, SGS, CE,ISO | Warranty | 2 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction of Alibaba website product 1ton 3m electric lift motor lifting hoist
1.Motor brake: adopt advanced magnetic cone brake to provide reliable stopping
2. Chain guide: high quality design provides smooth and quiet guidign og the lifting chain
3.Heavy duty motor: Squirrel cage parallel rotor motor; Cooling fins reduces the temperature of hoist and keep it working; The IP 55 protection can withstand demanding enviroment
4.Load chain: Carburizing chain or FEC chain is heat-treated for long life and endures harsh conditions;
5.Hook: hot forged high tensile steel, rigid and durable, fitted with safety latch to ensure safety lifting
6. Push button pendant: water-Proof and insulated, provides light and durable switching controls.
7. Phase error relay to prevent mortor from running at incorrect wire connection
Parameters of Alibaba website product 1ton 3m electric lift motor lifting hoist
| Model HSY | Capacity TON | Lifting Height M | Lifting Speed M/MIN | Lifting motor | Drive motor | I beam | |||||||||
| Power KW | Rotational Speed R/MIN | Phase | Voltage V | Frequency HZ/S | Power KW | Rotational Speed R/MIN | Running speed M/MIN | Phase | Voltage V | Frequency HZ/S | |||||
01-01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 380/220 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
02-02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 380/220 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
2.5-01 | 2.5 | 3/9 | 6.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
03-02 | 3 | 3/9 | 5.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
05-02 | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 110-178 |
Chain guide: high quality design provides smooth and quiet guidign og the lifting chain. Motor brake: adopt advanced magnetic cone brake to provide reliable stopping
Heavy duty motor: Squirrel cage parallel rotor motor; Cooling fins reduces the temperature of hoist and keep it working; The IP 55 protection can withstand demanding enviroment
Phase error relay to prevent mortor from running at incorrect wire connection.
We are professional hoist manufacturer with more than 20 years experience since 1992. If you have any demand about our product , please don't hesitate to contact us at any time!
CE ISO TUV SGS certificate
Service | |
Payment term: | T/T |
Warranty Period: | 1 year |
Delivery time: | 3 days after order |
Packing: | export carton and pallet |
1.Is your product customized?
1.Thanks for your question. Yes, because the working condition are differet, all our products are cstomizd dependingon detail requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What's the information should i provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, ift height, power source or other specials you give us will be more appreciated.
3. How many operation methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin(space capsule seat) control with joystick. You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional enfineer.
5. What's the information should i provide when inquiry?
? a. What's the lifting material?
? b. How much is the maximus lifting weight of the hoist?
? c. Have you installed the rails? Do you need us supply the rails? How long is it?
? d. Where are the working environment?
Contact Us
- Shanghai Yiying Crane Machinery Co., Ltd.
- Contact namePhoenix Yue Chat Now
- Phone86-21-64195879
- AddressRoom 8A03, Meilong Building, No. 81, Dahua 3rd Road
