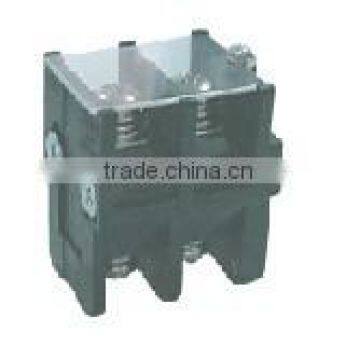

Perforation Terminal Blocks
Negotiable
/ Piece
200 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Yantian
You May Like
-
Perforation Terminal Blocks
-
Perforation Terminal Blocks
-
Perforation Terminal Blocks
-
Pitch 13.0mm 600V 40A Panel mount Connector Perforation Terminal Blocks Through Panel Terminal Connectors
-
Pitch 12.7mm 600V 60A Panel mount Connector Perforation Terminal Blocks Through Panel Terminal Connectors
-
Pitch 16.0mm 600V 75A Panel mount Connector Perforation Terminal Blocks Through Panel Terminal Connectors
Product Details
| Place of Origin | Guangdong, China | Brand Name | SCED | |
| Model Number | TD75-02-C |
Product Description
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/101 |
| 300/10 |
Wire Range AWG | 2-10 |
| 2-10 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 320/101 | 400/101 | 630/101 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 22 | ||
Material |
| ||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass /Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data |
| ||
Stripping Length mm | 12-13 | ||
Screw / Torque / lbf.in | M6 / 20-22 | ||
- Stable good quality
- Competitive price
- Quick response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
