Plane Thrust Ball Bearing 51111
- Qingdao Shanghai Guangzhou Shenzhen
- T/T Credit Card PayPal
You May Like
-
China Market 51112 Thrust Ball Bearing Online Wholesale Bearings From China
-
New Hotsell 51113 Thrust Ball Bearing 65x90x17m
-
Single Direction Thrust Ball Bearings 51114
-
Best Quslity 51115 Thrust Ball Bearings 75*100*19 mm
-
Thrust Ball Bearings 51116 With Competitive Price
-
China Hot Sell 51117 Thrust Ball Bearing 85x110x19mm
Product Details
| Brand Name | OEM | Bore Size | 50, 55 | |
| Outside Diameter | 70, 78 | Model Number | 51111 | |
| Precision Rating | P0 P6 P5 P4 P2 | Seals Type | open | |
| Number of Row | Single Row | Place of Origin | Shandong, China |
Product Description

Specification of thrust ball bearing
Model Number | 51111 |
Brand Name | HSH or OEM |
Structure | Thrust ball bearing |
Type | Ball |
Boundary Dimensions | d: 55 |
D: 78 | |
B: 16 | |
Rings Material | Ring Material Chrome Steel ,Carbon steel,Stainless steel |
Cages Material | Nylon ,steel , brass |
Basic Load Rating(kn) | Dynamic Cr: 83 |
Static Cor: 233 | |
Limiting Speed(r/min) | Lubricant (Grease): 1200 |
Lubricant (Oil): 2200 | |
Weight(kg) | 1.12 |
Application | Mainly used in metallurgy, mining, petroleum, chemical industry, construction machinery and other areas |
Certifications | ISO 9001:2008 |
Place of Origin | China (Mainland) |
Bearing characteristics of thrust ball bearing
1. Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces
2. Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
Product showing of thrust ball bearing

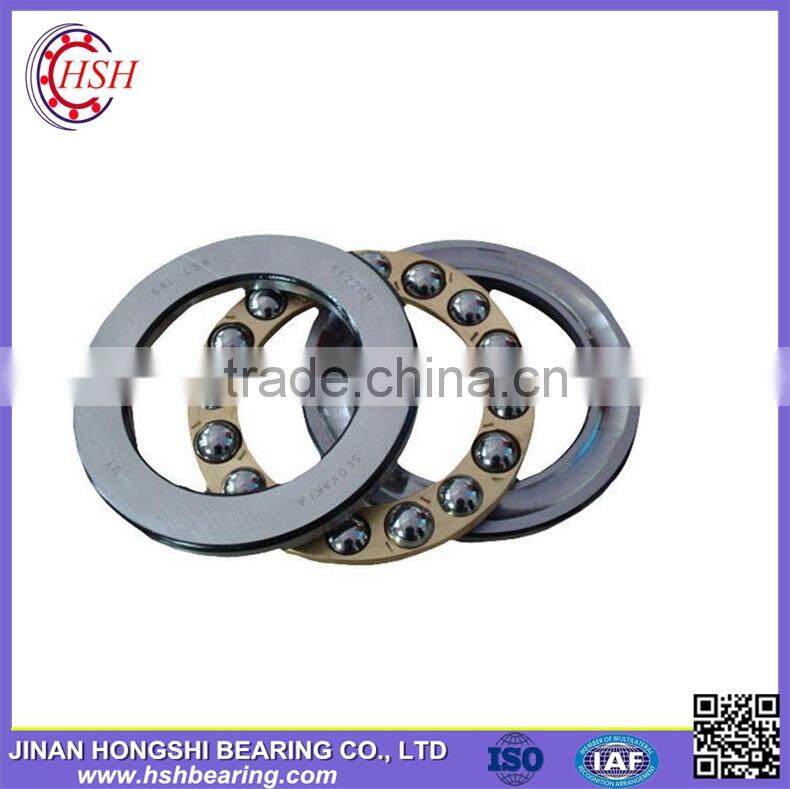

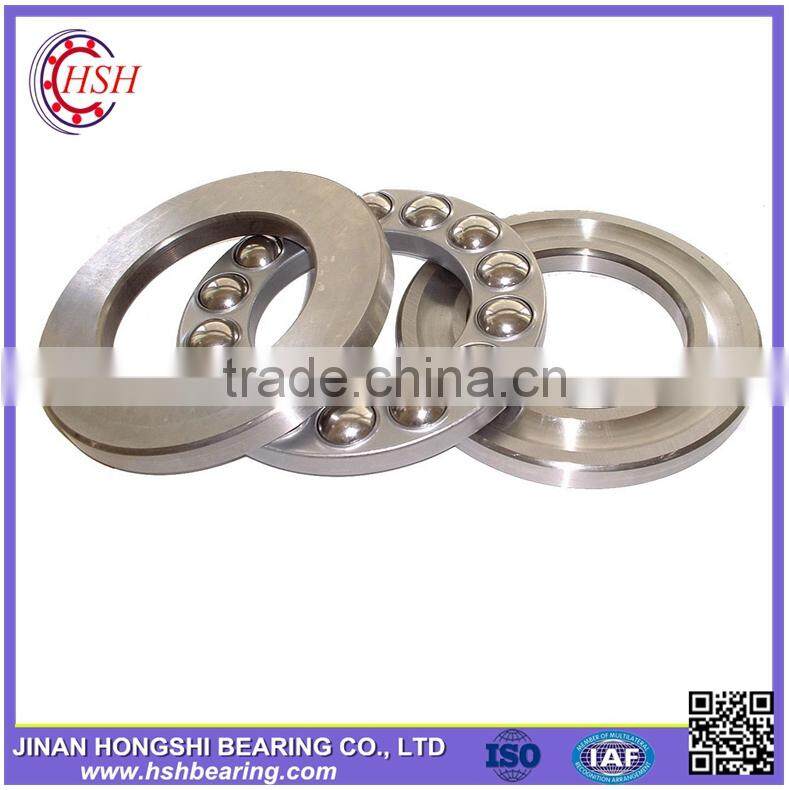

Chrome Steel thrust ball bearing
Full ceramic thrust ball bearing
Stainless steel deep groove ball bearing
Application of thrust ball bearing
More details of thrust ball bearing
| Model | Dimensions(mm) | Weight (kg) | ||
| HSH | d | D | H | |
| 51100 | 10 | 24 | 9 | 0.0193 |
| 51101 | 12 | 26 | 9 | 0.0214 |
| 51102 | 15 | 28 | 9 | 0.0243 |
| 51103 | 17 | 30 | 9 | 0.0253 |
| 51104 | 20 | 35 | 10 | 0.038 |
| 51105 | 25 | 42 | 11 | 0.056 |
| 51106 | 30 | 47 | 11 | 0.066 |
| 51107 | 35 | 52 | 12 | 0.083 |
| 51108 | 40 | 60 | 13 | 0.12 |
| 51109 | 45 | 65 | 14 | 0.15 |
| 51110 | 50 | 70 | 14 | 0.16 |
| 51111 | 55 | 78 | 16 | 0.24 |
| 51112 | 60 | 85 | 17 | 0.29 |
| 51113 | 65 | 90 | 18 | 0.324 |
| 51114 | 70 | 95 | 18 | 0.36 |
| 51115 | 75 | 100 | 19 | 0.392 |
| 51116 | 80 | 105 | 19 | 0.433 |
| 51117 | 85 | 110 | 19 | 0.46 |
| 51118 | 90 | 120 | 22 | 0.655 |
| 51120 | 100 | 135 | 25 | 1 |
| 51122 | 110 | 145 | 25 | 1.08 |
| 51124 | 120 | 155 | 25 | 1.2 |
| 51126 | 130 | 170 | 31 | 1.85 |
| 51130 | 150 | 190 | 31 | 2.2 |
| 51132 | 160 | 200 | 31 | 2.35 |
| 51134 | 170 | 215 | 34 | 3.3 |
Other products related with thrust ball bearing
Main products:
1.Aligning ball / roller bearing
2.Needle bearing
3.Angular contact ball / roller bearing
4.Tapered ball / roller bearing
5.Cylindrical ball / roller bearing
6.Spherical ball / roller bearing
7. Pillow block bearing
8. Thrust ball / roller bearing
9. Liner bearing
10. Combined bearing
11.Specialty type/use bearing
12. Deep groove ball bearing and other bearing
Packaging of thrust ball bearing
1. Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets;
2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets
3. As the clients' requirement
Shipping terms of thrust ball bearing
Shipping terms of damping rubber bearing
1.small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.
2.large quantity, can delivery by air, by sea, this is port to port.
Why choose us?
Jinan Hongshi Bearing Co., Ltd., with our own brand name HSH, is a leading manufacturer and exporter of ball bearings and roller bearings in China. Our workshop covers an area of over 5000 square meters, and there are more than 50 employees, including an outstanding team which consists of experts, composed of senior engineers and high-quality staff.
Our products are widely used in the agricultural machine, textile production, mining, printing and packing industries, in addition to various applications at airports, in air-conditioning systems, conveying devices, ships and so on.
A domestic sales and service network has been established to cover 15 major cities around China, and products are being exported to more than 60 countries and regions overseas including Japan, Korea, Italy ,Iran, Switzerland, France, America, Singapore, Thailand, India, Pakistan, Russia, Turkey ,England ,Australia as well as other countries and regions all over the world.
We insist on the principle “quality and cheap, first-class service, good faith and common development”, and look forward to the cooperate from the domestic and foreign customers.
If you are interested in any of our bearings or have an intention to order, please feel free to contact us.
Our workshop
If you are interested in our products deep groove ball bearing, welcome to contact us for more detailed information,
- Your inquiry related to our product & price will be replied within 24hours
- Well-trained & experienced staff are to answer all your inquiries.
- OEM & ODM projects are highly welcomed. We have strong R&M team here to help.
- Free samples available
- The professional Logistic Center service
- Technical support after sale
- Any other reasonable requirements.
Payment terms of thrust ball bearing
Our service
Q1: If we cannot find the products that we need in your prodcution description, what should we do?
Please send us the model NO or the size and type of the products that you need. Firstly, we will check whether it is in stock or not. The bearings operated by our company is a wide variety, completes specifications, present 20-30 new products every month and some of them were not uploaded to website timely. If any special bearing is needed, we can also customized for you.
Q2: If the model letter of the bearing can not be seen clearly, is it the reason of the abrasion?
You can also provide the size and using environment or drawing of the bearings to us, we will provide the most suitable products for you!
Welcome here to get your bearings! You will get the best quality bearings in China and the best service in our company!
