CMP E1FX cable gland (UK)

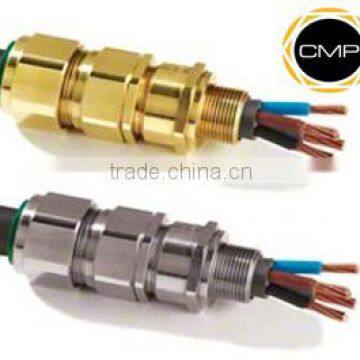

CMP type E1FX cable gland

Material: Brass, Brass Nickel Plated & Stainless Steel

Accessories include: Locknut, Earth tag, PVC Shroud and Nylon Washer.

CMP Type E1FX Tri-Star Triple Certified Flameproof (Type ‘d’), Increased Safety (Type ‘e’) and Restricted
Breathing (Type ‘nR’) indoor and outdoor cable gland for use in Zone 1, Zone 2, Zone 21 and Zone 22
Hazardous Areas with Braided, Pliable Wire Armour (PWA), Strip Armour and Steel Tape Armour (STA) cable.
This cable gland provides a Flameproof seal on the cable inner bedding and in addition the gas tight seal has
been tested to prove compatibility with Restricted Breathing equipment. The cable gland allows mechanical
cable retention and earth continuity via the cable armour termination. Separate tightening actions for the inner
displacement seal and the armour termination afford maximum control over the pressure applied to cable
bedding, and also allows the effectiveness of the gas tight seal to be tested. A detachable armour cone and
AnyWay clamping ring arrangement facilitates remote make off and enables the cable to be disconnected from
the equipment. An environmental / load retention seal is provided on the cable outer sheath.
The CMP E1FX Tri-Star Cable Gland is suitable for use with all forms of equipment protection permitted in
Zone 1, Zone 2, Zone 21 & Zone 22 provided always that the prevailing code of practice for selection and
installation is observed, e.g. IEC 60079-14.
