Home > Products > TOSA > 1550nm DFB Optical Sub Assembly TOSA SFP With Isolator -10~85C

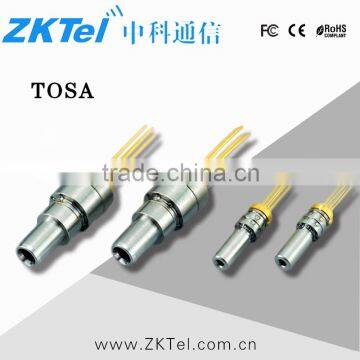

1550nm DFB Optical Sub Assembly TOSA SFP With Isolator -10~85C

FOB Price

US$ 5 - 10 / Unit

1 Unit(Min. Order)

Port shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	ZKTel
Model Number	ZT6x-xxxx-xx

Product Description

1550nm DFB Optical Sub-Assembly

1550nm DFB 1.25Gbps Optical Sub-Assembly TOSA

1. Features

1550nm directly modulate DFB laser Diode

With Isolator integrated

Low noise, low distortion, low threshold current

-10-85℃ operation temperature range

Rohs Compliant and Lead Free

Excellent Reliability

With FPC

2.Order Information

Part No.	Source	Wavelength	Data Rate	Output Power	Package series	Connector	Pin Type
ZT614-6xx1	DFB	1550nm	2.5G	2-3mw	Receptacle F	SC	LD-Pin-1
ZT412-5xx5	DFB	1310nm	1.25G	0.3-1mw	Receptacle A	FC-1	LD-Pin-2
ZT513-5xx5	FP	1550nm	1.25G	1-2mw	Receptacle B	FC-2	LD-Pin-2
ZT312-5xxx	FP	1310nm	1.25G	0.3-1mw	Receptacle E	ST-1	LD-Pin-2
ZT615-6xx7	DFB	1550nm	2.5G	3-4mw	D	FC/APC	LD-Pin-1
ZT415-5xx9	DFB	1310nm	1.25G	2-3mw	B	SC/APC	LD-Pin-1
ZT315-5xx7	FP	1310nm	1.25G	1-2mw	A	FC/APC	LD-Pin-1
ZT515-5xx7	FP	1550nm	1.25G	1-2mw	A	FC/APC	LD-Pin-1
ZT714-5xx7-29x	CWDM DFB	1290nm	1.25G	2-3mw	Pigtail B	FC/APC	LD-Pin-2
ZT714-5xx9-47x	CWDM DFB	1470nm	1.25G	2-3mw	Pigtail B	SC/APC	LD-Pin-1
ZT714-5xx9-59x	CWDM DFB	1590nm	1.25G	2-3mw	Pigtail B	SC/APC	LD-Pin-1
ZT714-5xx9-61x	CWDM DFB	1610nm	1.25G	2-3mw	Pigtail B	SC/APC	LD-Pin-1
ZT511-6xx3	FP	1550nm	2.5G	0.3-0.5mw	Receptacle	LC-TOSA	LD-Pin-2
ZT411-5xx3	DFB	1310nm	1.25G	0.3-0.5mw	Receptacle	LC-TOSA	LD-Pin-1
ZT613-6xx3	DFB	1550nm	2.5G	1-1.59mw	Receptacle	LC-TOSA	LD-Pin-2
ZT311-6xx3	FP	1310nm	2.5G	0.15-0.3mW	Receptacle	LC-TOSA	LD-Pin-2
ZT713-6xx9-61x	DFB	1610nm CWDM	2.5G	1-1.59mw	Receptacle	LC-TOSA	LD-Pin-2
ZT312-10xx3	DFB	1310nm	10G	0.2-1mW	Receptacle	LC-TOSA	LD-Pin-2
ZT312-5xx1	DFB	1310nm	1.25G	0.5-1mW	Receptacle	SC-TOSA6	LD-Pin-2
