Home > Products > SFP+ > BIDI SFP+ 1270nm&1330nm 10KM DDM CT 10G

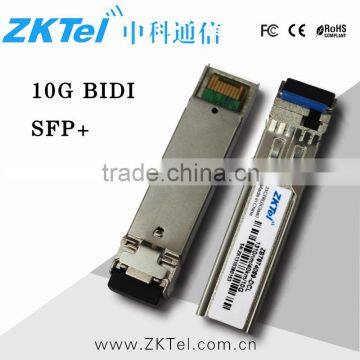

BIDI SFP+ 1270nm&1330nm 10KM DDM CT 10G

FOB Price

USD $40 - $60 / Unit

1 Unit(Min.Order)

Supply Ability 10000 Unit / Units per Month
Port Shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	ZKTEL
Model Number	ZB7781099-DCL

Product Description

KTel's BIDI SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Features:

l One Fiber Bi-Di SFP+ Optical Transceiver, Bidi WDM SFP+

l Up to 10.3 Gbps Bi-directional Data Links

l Fully Compliant with SFP+ MSA

l Compliant to IEEE 802.3ae 10GBASE-BX

l SFF-8472 Digital Diagnostic Function

l Simplex LC Connector

l 1330TX/1270RX and 1270TX/1330RX

l Distance Up to 60 km

l Only Required +3.3 V Power Supply

l RoHS Compliant

l -5 to 70oC Operating

Application:

l 10GBASE-BX at 10.3125 Gb/s

l 10GBASE-BX at 9.953 Gb/s

l 1000 Base-LX Ethernet

l 8XFC at 8.5Gbps

l 4XFC at 4.25Gpbs

l 2XFC at 2.125Gpbs

l 1xFC at 1.0625Gbps
