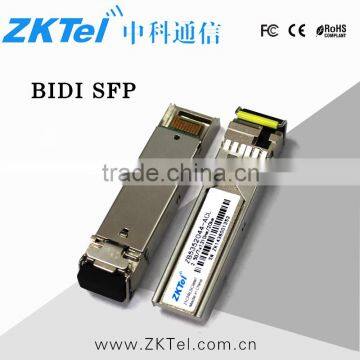

BIDI SFP 1.25Gbps SFP 1310nm/1550nm SC Transceiver 20Km CISCO/HUAWEI/HP Compatible CT Optical Module

FOB Price

USD $4 - $8 / Unit

1 Unit(Min.Order)

Supply Ability 100000 Unit / Units per Month
Port shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	ZKTel
Model Number	ZB5352033-ACS

Product Description

BIDI SFP 1310nm&1550nm 1.25Gbps

1.25Gbps BIDI SFP 1310nm&1550nm SM SC Transceiver 20Km 0~70℃ DDM CISCO/HUAWEI/HP Compatible

1. Features

BiDi SC or LC SFP Single Mode Transceiver

Compliant with SFP MSA and SFF-8472 with LC receptacle

1310nm FP Laser for transmitter and 1550nm PIN+TIA for receiver

Hot-pluggable

Single +3.3 Power Supply

Complies with Telcordia (Bellcore) GR-468-CORE

Typical data rate 1.25Gbps

Maximal reach 20km

RoHS-6 compliance

2. Application

Gigabit Ethernet

Fiber Channel

Routers, Hubs or Repeaters

3.Order Information

Package	Part No.	Data Rate Range	Wavelength	Optical Components	Distance Range	Connector	Case Temp.	DDM
BIDI SFP	ZB5350211-Dxx	100M~155Mbps	1310nm/1550nm	FP/PIN	2km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5530211-Dxx	100M~155Mbps	1550nm/1310nm	FP/PIN	2km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5351511-Dxx	100M~155Mbps	1310nm/1550nm	FP/PIN	15km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5531511-Dxx	100M~155Mbps	1550nm/1310nm	FP/PIN	15km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5354011-Dxx	100M~155Mbps	1310nm/1550nm	FP/PIN	40km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5534011-Dxx	100M~155Mbps	1550nm/1310nm	DFB/PIN	40km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5358011-Dxx	100M~155Mbps	1310nm/1550nm	DFB/PIN	80km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5538011-Dxx	100M~155Mbps	1550nm/1310nm	DFB/PIN	80km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5112911-Dxx	100M~155Mbps	CWDM/CWDM	DFB/PIN	29DB	LC/SC	Com./Ind.	D
BIDI SFP	ZB5113411-Dxx	100M~155Mbps	CWDM/CWDM	DFB/PIN	34DB	LC/SC	Com./Ind.	D
BIDI SFP	ZB5113611-Dxx	100M~155Mbps	CWDM/CWDM	DFB/PIN	36DB	LC/SC	Com./Ind.	D
BIDI SFP	ZB535M533-Dxx	up to 1.25Gbps	1310nm/1550nm	FP/PIN	550m	LC/SC	Com./Ind.	D
BIDI SFP	ZB553M533-Dxx	up to 1.25Gbps	1550nm/1310nm	FP/PIN	550m	LC/SC	Com./Ind.	D
BIDI SFP	ZB5350333-Dxx	up to 1.25Gbps	1550nm/1310nm	FP/PIN	3km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5530333-Dxx	up to 1.25Gbps	1550nm/1310nm	FP/PIN	3km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5351033-Dxx	up to 1.25Gbps	1310nm/1550nm	FP/PIN	10km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5531033-Dxx	up to 1.25Gbps	1550nm/1310nm	DFB/PIN	10km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5352033-Dxx	up to 1.25Gbps	1310nm/1550nm	FP/PIN	20km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5532033-Dxx	up to 1.25Gbps	1550nm/1310nm	DFB/PIN	20km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5354033-Dxx	up to 1.25Gbps	1310nm/1550nm	DFB/PIN	40km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5534033-Dxx	up to 1.25Gbps	1550nm/1310nm	DFB/PIN	40km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5356033-Dxx	up to 1.25Gbps	1310nm/1550nm	DFB/PIN	60km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5536033-Dxx	up to 1.25Gbps	1550nm/1310nm	DFB/PIN	60km	LC/SC	Com./Ind.	D
BIDI SFP	ZB5111933-Dxx	up to 1.25Gbps	CWDM/CWDM	DFB/PIN	19dB	LC/SC	Com./Ind.	D
BIDI SFP	ZB5112433-Dxx	up to 1.25Gbps	CWDM/CWDM	DFB/PIN	24dB	LC/SC	Com./Ind.	D
BIDI SFP	ZB5112633-Dxx	up to 1.25Gbps	CWDM/CWDM	DFB/PIN	26dB	LC/SC	Com./Ind.	D
BIDI SFP	ZB5112833-Dxx	up to 1.25Gbps	CWDM/CWDM	DFB/PIN	28dB	LC/SC	Com./Ind.	D
BIDI SFP	ZB5113333-Dxx	up to 1.25Gbps	CWDM/CWDM	DFB/APD	33dB	LC/SC	Com./Ind.	D
BIDI SFP	ZB5113633-Dxx	up to 1.25Gbps	CWDM/CWDM	DFB/APD	36dB	LC/SC	Com./Ind.	D
