Home > Products > SFF > SFF2*5 1.25Gbps Dual fiber 1550nm SM SC Transceiver 80Km CT Optical Module

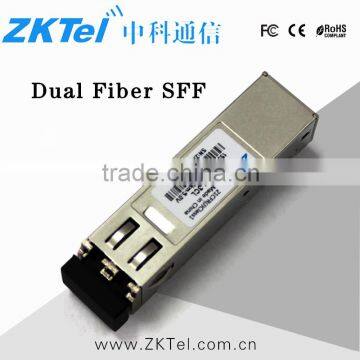

SFF2*5 1.25Gbps Dual fiber 1550nm SM SC Transceiver 80Km CT Optical Module

FOB Price

USD $10 - $20 / Unit

1 Unit(Min.Order)

Supply Ability 100000 Unit / Units per Month
Port shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	ZKTel
Model Number	ZD3E803-3CS

Product Description

SFF2*5 1550nm 1.25Gbps 80km

1.25Gbps Dual fiber SFF2*5 1550nm SC Transceiver 80km 0~70℃

1. Features

SFF Duplex LC Transceiver

Industry Standard 2*5 footprint with LC Receptacle

Compliant with SFF MSA-2000

Transmitter DFB 1550nm Laser and Receiver PIN+TIA

Single +3.3 Power Supply

LVPECL Differential Inputs and Outputs

LVPECL or LVTTL Signal Detection Output is Optional

Complies with Telcordia (Bellcore) GR-468-CORE

Typical data rate 1.25Gbps

Up to reach 80Km transmission distance

2. Application

Gigabit Ethernet

Fiber Channel

3.Order Information

Package	Part No.	Data Rate Range	Wavelength	Optical Components	Distance Range	Connector	Case Temp.
SFF 2*5	ZD3B021-xxL	up to 155Mbps	1310nm	FP/PIN	2km	LC	Com./Ind.
SFF 2*5	ZD3B151-xxL	up to 155Mbps	1310nm	FP/PIN	15km	LC	Com./Ind.
SFF 2*5	ZD3B401-xxL	up to 155Mbps	1310nm	FP/PIN	40km	LC	Com./Ind.
SFF 2*5	ZD3B601-xxL	up to 155Mbps	1310nm	FP/PIN	60km	LC	Com./Ind.
SFF 2*5	ZD3DA01-xxL	up to 155Mbps	1310nm	DFB/PIN	100km	LC	Com./Ind.
SFF 2*5	ZD3C801-xxL	up to 155Mbps	1550nm	FP/PIN	80km	LC	Com./Ind.
SFF 2*5	ZD3EA01-xxL	up to 155Mbps	1550nm	DFB/PIN	100km	LC	Com./Ind.
SFF 2*5	ZD3EA21-xxL	up to 155Mbps	1550nm	DFB/PIN	120km	LC	Com./Ind.
SFF 2*5	ZD3B022-xxL	up to 622Mbps	1310nm	FP/PIN	2km	LC	Com./Ind.
SFF 2*5	ZD3B152-xxL	up to 622Mbps	1310nm	FP/PIN	15km	LC	Com./Ind.
SFF 2*5	ZD3D402-xxL	up to 622Mbps	1310nm	DFB/PIN	40km	LC	Com./Ind.
SFF 2*5	ZD3C402-xxL	up to 622Mbps	1550nm	FP/PIN	40km	LC	Com./Ind.
SFF 2*5	ZD3E802-xxL	up to 622Mbps	1550nm	DFB/PIN	80km	LC	Com./Ind.
SFF 2*5	ZD3AM53-xxL	up to 1.25Gbps	850nm	VCSEL/PIN	≤0.550km	LC	Com./Ind.
SFF 2*5	ZD3B023-xxL	up to 1.25Gbps	1310nm	FP/PIN	2km	LC	Com./Ind.
SFF 2*5	ZD3B103-xxL	up to 1.25Gbps	1310nm	FP/PIN	10km	LC	Com./Ind.
SFF 2*5	ZD3B203-xxL	up to 1.25Gbps	1310nm	FP/PIN	20km	LC	Com./Ind.
SFF 2*5	ZD3B303-xxL	up to 1.25Gbps	1310nm	FP/PIN	30km	LC	Com./Ind.
SFF 2*5	ZD3D403-xxL	up to 1.25Gbps	1310nm	DFB/PIN	40km	LC	Com./Ind.
SFF 2*5	ZD3E403-xxL	up to 1.25Gbps	1550nm	DFB/PIN	40km	LC	Com./Ind.
SFF 2*5	ZD3E803-xxL	up to 1.25Gbps	1550nm	DFB/PIN	80km	LC	Com./Ind.
SFF 2*5	ZD3GA03-xxL	up to 1.25Gbps	1550nm	DFB/APD	100km	LC	Com./Ind.
SFF 2*5	ZD3GA23-xxL	up to 1.25Gbps	1550nm	DFB/APD	120km	LC	Com./Ind.
SFF 2*5	ZD3GA63-xxL	up to 1.25Gbps	1550nm	DFB/APD	160km	LC	Com./Ind.
SFF 2*5	ZD3AM34-xxL	up to 2.125Gbps	850nm	VCSEL/PIN	≤300m	LC	Com./Ind.
SFF 2*5	ZD3B024-xxL	up to 2.488Gbps	1310nm	FP/PIN	2≤km	LC	Com./Ind.
SFF 2*5	ZD3D154-xxL	up to 2.488Gbps	1310nm	DFB/PIN	15km	LC	Com./Ind.
SFF 2*5	ZD3D404-xxL	up to 2.488Gbps	1310nm	DFB/PIN	40km	LC	Com./Ind.
SFF 2*5	ZD3C404-xxL	up to 2.488Gbps	1550nm	FP/PIN	40km	LC	Com./Ind.
SFF 2*5	ZD3E804-xxL	up to 2.488Gbps	1550nm	DFB/PIN	80km	LC	Com./Ind.
SFF 2*5	ZD3AM16-xxL	up to 4.25Gbps	850nm	VCSEL/PIN	≤150m	LC	Com./Ind.
SFF 2*5	ZD3B056-xxL	up to 4.25Gbps	1310nm	FP/PIN	5km	LC	Com./Ind.
SFF 2*5	ZD3D106-xxL	up to 4.25Gbps	1310nm	DFB/PIN	10km	LC	Com./Ind.
SFF 2*5	ZD3D206-xxL	up to 4.25Gbps	1310nm	DFB/PIN	20km	LC	Com./Ind.
SFF 2*5	ZD3D406-xxL	up to 4.25Gbps	1550nm	DFB/PIN	40km	LC	Com./Ind.
SFF 2*5	ZD3G806-xxL	up to 4.25Gbps	1550nm	DFB/APD	80km	LC	Com./Ind.
