Home > Products > sewage suction truck > Dongfeng 4000liter vacuum cleaning truck

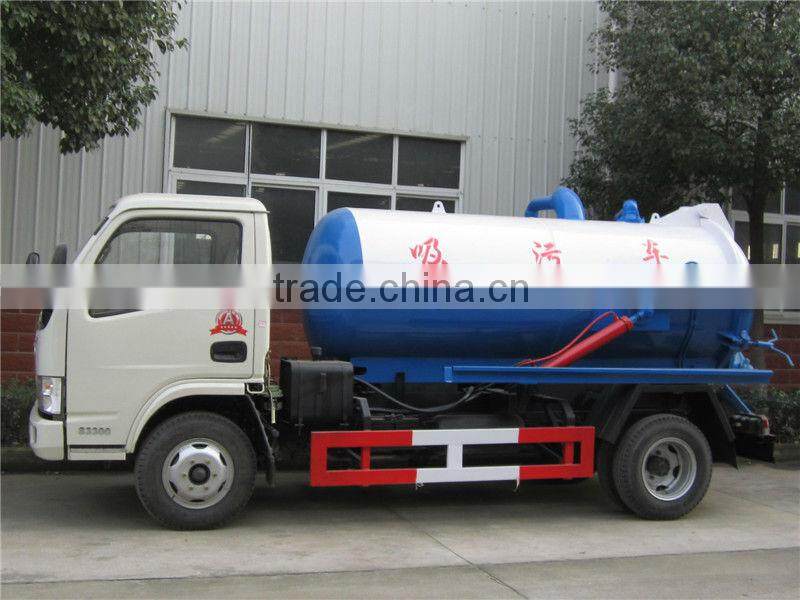

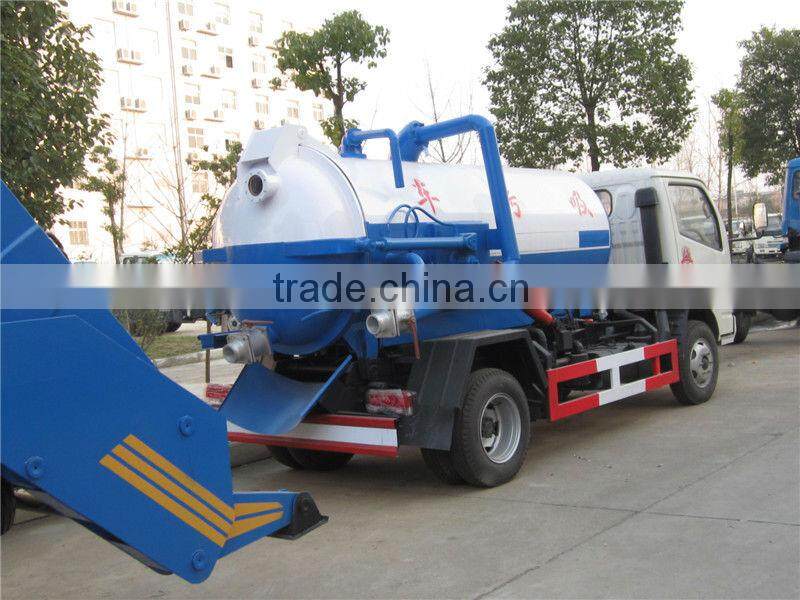

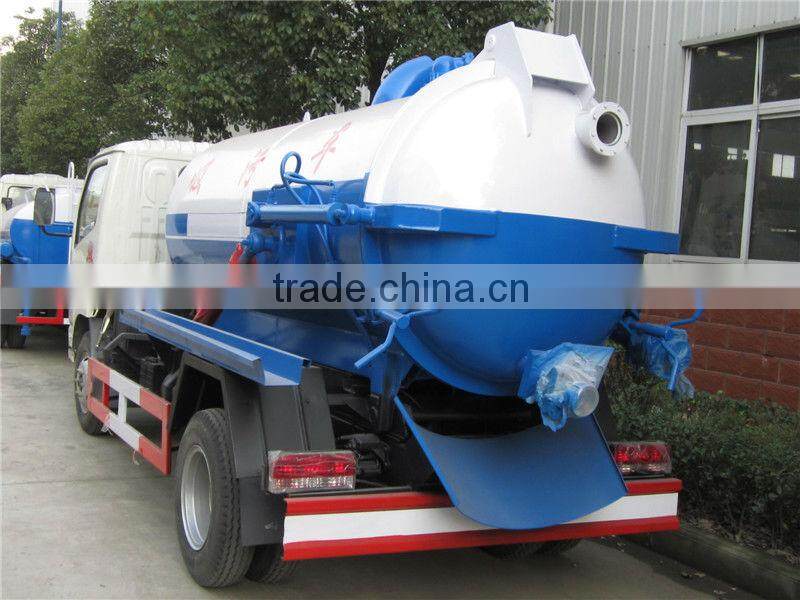

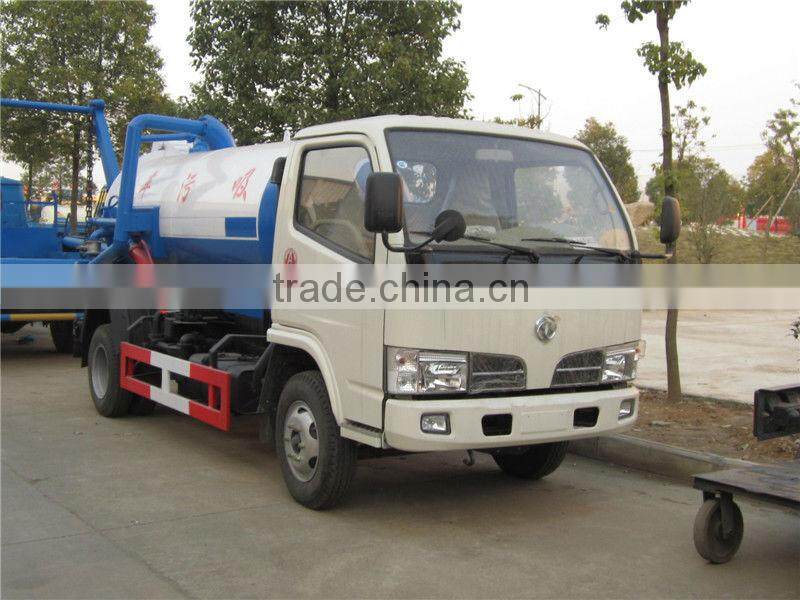

Dongfeng 4000liter vacuum cleaning truck
- 500 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Transmission Type | Manual | Condition | New | |
| Emission Standard | Euro 2 | Fuel Type | Diesel | |
| Tank Volume | 4000liter | Dimension (L x W x H) | 5860*1950*2600 | |
| Place of Origin | Hubei, China | Brand Name | jiangte | |
| Model Number | JDF5060GXW3 | Horsepower | 95hp | |
| Gross Vehicle Weight | 6495 |
Product Description
Specifications
Dongfeng 4000liter vacuum cleaning truck4x2
right hand drive available
engine power
Dongfeng 4000liter vacuum cleaning truck
Vacuum cleaning truck used for suction and transfer work of fecal and other sewages carried out by environmental sanitation departments of urban and rural. Featuring high-efficiency suction, self-suction, self-discharge and direct filling, the truck can be operated quickly and simply.
Features
1. Vacuum pump driven by transmission-side power take-off allows self-suction and
self-discharge through the four-way valve.
2. Featuring high-efficiency suction, liquid-gas separation, oil-water separation, facilitates
and simplifies operation.
3. Can suck fecal, sewage, sludge and other liquid mixed with small suspended solids.The suction depth is not less than 4 meters under the supporting surface of wheels.
4. A level gauge, high level alarm and overflow prevention device are provided for the sludge
tank. A discharge outlet is provided on the rear of the tank, from which sewage is discharged
by gravity.
5. Rotary boom of suction hose can rotate 360º and lift upwards and downwards,
facilitating sewage suction tasks.
Name | Dongfeng 4000liter vacuum cleaning truck | ||||
Chassis Model | EQ1060TJ20D3 | ||||
Drive Type | 4X2 | ||||
Engine | Model | CY4102-C3F | |||
Engine Power (KW) | 70 | ||||
Max. Horse Power | 95 HP | ||||
Max. Torque (N.m) | 280 | ||||
Displacement (L) | 3.856 | ||||
Emission | Euro 2 | ||||
Overall Dimensions (mm) | 5860X1950X2600 | ||||
Tank Dimensions (mm) | DØ3000xL1350 | ||||
Tank Capacity (m3) | 4 | ||||
Wheelbase (mm) | 3300 | ||||
Tread (Front/ Rear) (mm) | 1506/1466 | ||||
Front/ Rear Overhang (mm) | 1032/1488 | ||||
Max. Speed (km/h) | 80 | ||||
Vehicle curb weight (kg) | 3300 | ||||
Vehicle Gross Weight (kg) | 6495 | ||||
Diameter of Suction Tube (mm) | Ø100 | ||||
Suction Depth (m) | Min. 4.5 | ||||
Opening Angle of the Rear tank door (°) | 45 | ||||
Lifting angle of tank (°) | 30 | ||||
Vacuum Pump | Type | Vane rotary pump | |||
Pumping Speed (m3/h) | 318 | ||||
Rated Speed (rpm) | 850 | ||||
Max Operating vacuum | Absolute value | 10 | |||
Percentage(%) | 90 | ||||
