Home > Products > Centrifugal fan > 9-26 HIGH PRESSURE MATERIAL TRANSPORTATION CENTRIFUGAL FAN, centrifugal fan
9-26 HIGH PRESSURE MATERIAL TRANSPORTATION CENTRIFUGAL FAN, centrifugal fan
US$ 300 - 1,000
/ Unit
5 Units(Min. Order)
- Foshan
You May Like
-
Hot Sale HBJS Aluminum Alloy Centrifugal Fan
-
Industrial Y5-48 Series Boiler Centrifugal Fan, ventilation for industrial boiler, induction air blower
-
High Quality Double-stage High Pressure Blower
-
Hot sale 9-26 SERIES HIGH PRESSURE INDUSTRIAL BLOWER
-
High Quality Ring Blower, High Pressure Industrial Fan
-
High quality HTFC-I Single -speed fan for Fire-control, exhaust ventilation fan
Product Details
| Electric Current Type | AC | Blade Material | Cast Iron | |
| Mounting | Duct Fan | Place of Origin | Guangdong, China | |
| Brand Name | POPULA | Model Number | 9-19-6.3A / 9-29 / 9-12/ 9-14 | |
| Power | 45kw | Voltage | 380/460V | |
| Air Volume | 12699~13525m3/h | Speed | 2970RPM | |
| Certification | CCC | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications

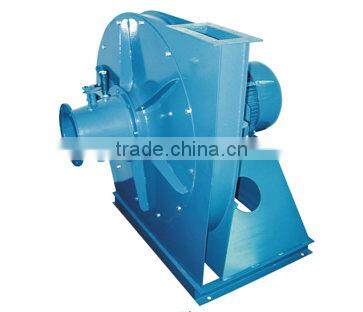

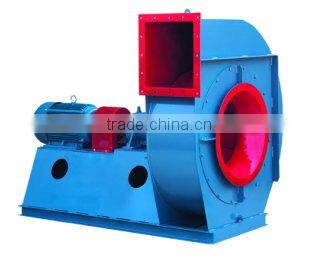

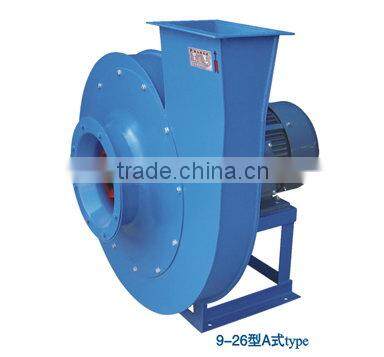

9-26 HIGH PRESSURE CENTRIFUGAL FAN
1.centrifugal fan with low noise and large air flow.

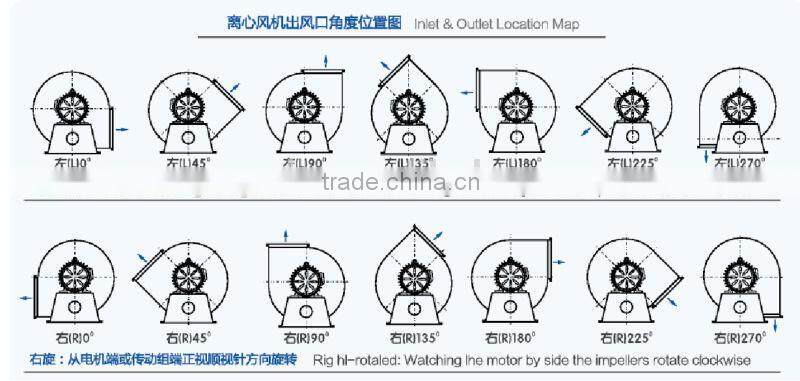

2.the angulation of outlet can adjust
This series are used for coercive ventilation in industrial such as ancient furnace,glas,electroplanting,ceramics,ect. and are widely used for material transportation in processing industrial like food,feed and slag.
The transportation in processing medium is air or other non-spontaneous-combustion and non-explosive-comubstion air with no harm to human.
The air transferred shall not contain any adhesive material,dust and grain and the concertration shall not exceed 150mg/m3 with the temperature no higher than 80 centigrade degree.
| MODEL | POWER(kW) | ROTATION(r/min) | VOLUME(m3/h) | PRESSURE(Pa) |
| 3.5A | 3 | 2900 | 1473~2154 | 2950~2608 |
| 4A | 5.5 | 2900 | 2198~3215 | 3852~3407 |
| 7.5 | 2900 | 3000~5000 | 2835~1060 | |
| 4.5A | 7.5 | 2900 | 3130~3685 | 4910~4776 |
| 11 | 2930 | 3963~4792 | 4661~4256 | |
| 5A | 15 | 2930 | 4293~6349 | 6035~5381 |
| 18.5 | 2930 | 6762 | 5180 | |
| 5.6A | 22 | 2930 | 6032~7185 | 7610~7400 |
| 30 | 2950 | 7766~9500 | 7218~6527 | |
| 6.3A | 45 | 2970 | 8588~11883 | 9698~8915 |
| 55 | 2970 | 12699~13525 | 8636~8310 | |
| 7.1D | 75 | 2970 | 12292~14643 | 12427~12078 |
| 110 | 2980 | 15826~19360 | 11776~10635 | |
| 8D | 132 | 2980 | 17584~20947 | 15955~15504 |
| 200 | 2980 | 22640~27696 | 15112~13634 | |
| 30 | 1470 | 13001~13848 | 3421~3294 | |
| 18.5 | 1450 | 8792~12166 | 3834~3529 | |
| 9D | 45 | 1480 | 16118~19717 | 4620~4181 |
| 30 | 1470 | 12518~14913 | 4869~4736 | |
| 10D | 75 | 1480 | 23612~30052 | 5761~5065 |
| 55 | 1480 | 17172~21465 | 6143~5920 | |
| 11.2D | 132 | 1490 | 39205~42221 | 6691~6382 |
| 110 | 1480 | 24126~36189 | 7747~7009 | |
| 37 | 980 | 23959~27953 | 3031~2763 | |
| 30 | 980 | 15973~21963 | 3346~3140 | |
| 12.5D | 250 | 1490 | 46117~58695 | 9103~7993 |
| 160 | 1490 | 33540~41925 | 9713~9356 | |
| 75 | 990 | 33309~38860 | 3785~3450 | |
| 45 | 980 | 22206~30533 | 4179~3921 | |
| 14D | 75 | 990 | 31197~35097 | 5262~5188 |
| 250 | 1490 | 47121~53011 | 12285~12109 | |
| 16D | 500 | 1490 | 70339~79131 | 16250~16014 |
| 220 | 990 | 75675~81496 | 5971~5696 |
....
