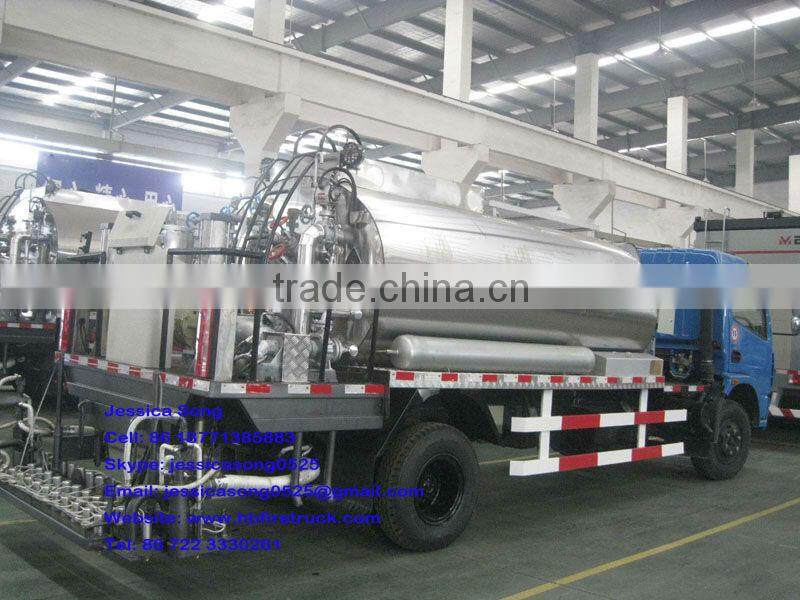

4cbm Jac Tar Distributor Truck

Specifications

4cbm JAC Tar Distributor Truck

• . It is used for spraying variour asphalt
• . Our asphalt bitumen sprayer truck have standard type, semi-intelligentized type, full automatic type, tar tanker load volume vary, can meet customer's required.

1. Overall dimension (L*W*H) (mm): 7350 x 2010 x2460

2. Gross weight: 8490 kg

3. Curb weight: 5200 kg

4. Rated payload weight: 3095 kg

5. Driver's cabin: single row with sleeper bed, tilted, 3 seats, power-assisted steering, optional A/C

6. Drive type: 4x2, LHD (RHD can optional)

7. Wheelbase: 3815mm

8. Wheel track (F/R): 1665 / 1525

9. Leaf spring number: 9/12

10. Approach/ Departure angle( ° ) : 24/15

11. Engine model: CY4102-C3C

12. Engine make: Dongfeng Chaoyang  Power Co., Ltd

13. Engine power: 88kw / 120ps

14. Displacement: 3856ml

15.Tire type: 7.50-16. Tire number: 6 pcs

17. Tar tank volume: 4000liter

18. Asphalt Pump: Low working noize, stable operation, high pressure
19.  Heating System: Imported burner, with high burning effect
20.  Spraying Equipment (rear control system, handspray gun): Heat up conducting oil quickly, make the asphalt in working state. Control the temperature automatically, save time and cost.
