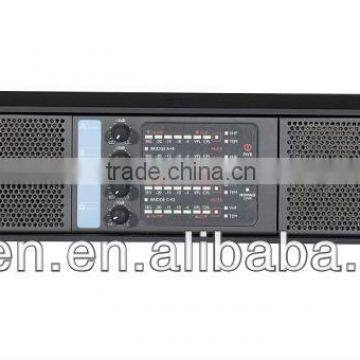

FP10000Q 4channel high power amplifier

FOB Price

Negotiable / Piece

2 Pieces(Min.Order)

Supply Ability 300 Piece / Pieces per Month
Port Guangzhou/Huangpu
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	M.Klen
Model Number	FP10000Q

Product Description

1. More power from smaller and lighter racks with more configuration flexibility and yet with no compromise in the legenday Lab-gruppen sound -- that's the promise fulfilled by FP+ series amplifiers.

2. The expanded FP+ series with both two- and four-channel versions spread across a range of power output levels.

3. Offer real-time monitoring and control via the NomadLink network, with network modules built in as standard equipment. Finally standing behind Lab-gruppen reputation for rock-solid reliability is a six-year, no-quilbble warrany.

FP10000Q amplifier specifications:

Description
power amplifier
Model	FP7000Q	FP10000Q
Output Power	20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)	1450WX2	1300WX4
4ΩStereo Power(RMS)	2800WX2	2100WX4
2ΩStereo Power(RMS)	3500WX2	2500WX4
8ΩBridged Power(RMS)	5600W
4ΩBridged Power(RMS)	8000W
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal	130-265 V / 65-135 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)	483×88×396mm
Packing dimension	560×180×500mm
Net weight(kg)	15KG
Gross weight(kg)	18KG

Our Services

♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.

♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.

♦ Offer 1year free warranty, except the man-made damaged.

♦ All the products will be tested and inspected before the delivery.
