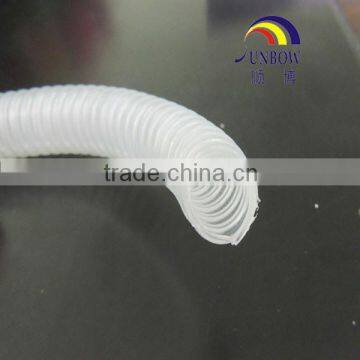

Plastic Corrugated Tube for Electric Equipment
- SHENZHEN
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SUNBOW | |
| Material | PP |
Product Description
Material: Polypropylene
Operating temperature: -40c-110c
Characteristics:
Good flexibility,smooth and bright surface,
Excellent chemical resistant
No humidity absorbing
Burning behaviour acc. to Fmvss302 Type B
Structure: Wavy shape both interiorly and exteriorly
Applications:
It can be used in machineries, electric equipment,foodstuff machineries, automatic meters and gauges,motors,protecting the cables from abrasion and providing insulation to the wires and cables.
Production Specification:
Part No | Specification | Inside Diameter (mm) | Outside Diameter (mm) | Packing Unit (meter/roll) |
SB-PP-3.0 | 3 | 2.8 | 5.1 | 3.. |
SB-PP-5.0 | 5 | 5 | 7.1 | 200 |
SB-PP-6.0 | 6 | 6 | 9.2 | 200 |
SB-PP-7.5 | 7.5 | 7 | 10 | 200 |
SB-PP-8.5 | 8.5 | 8.5 | 11.5 | 200 |
SB-PP-10.0 | 10 | 10.1 | 12.7 | 100 |
SB-PP-11.0 | 11 | 11.1 | 15.7 | 100 |
SB-PP-13..0 | 13 | 12.9 | 15.8 | 100 |
SB-PP-14.0 | 14 | 14.5 | 18.3 | 100 |
SB-PP-15.0 | 15 | 15 | 21.2 | 100 |
SB-PP-17.0 | 17 | 16.8 | 21 | 100 |
SB-PP-19.0 | 19 | 19.4 | 24 | 50 |
SB-PP-22.0 | 22 | 21.3 | 25.5 | 50 |
SB-PP-23.0 | 23 | 23.7 | 28 | 50 |
SB-PP-26.0 | 26 | 26.4 | 31.3 | 50 |
SB-PP-29.0 | 29 | 29.3 | 33.9 | 50 |
SB-PP-34.0 | 34 | 36.7 | 42.2 | 50 |
SB-PP-40.0 | 40 | 39.8 | 50 | 25 |
SB-PP-50.0 | 50 | 47.8 | 53.6 | 25 |
