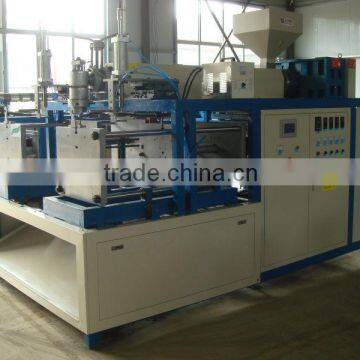

15 L horizontal type blow moulding machine

FOB Price

US$ 10,000 - 16,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Bottle
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Hebei, China
Brand Name	zhongyi	Model Number	wsj-8
Voltage	380V	Power(W)	45KW
Dimension(LWH)	400021002200mm	Weight	4000KG
Certification	patent	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

15 L horizontal type blow moulding machine:
1. ours is a manufacture
2. exquisite design
3. positioning accurate
4. reliable

15L horizontal type blow moulding machine:

Type	WSJ-8
The max volume of the product L	15
The quantity of die head	1
The quantity of the moulds ( set)	2
Production capacity( without raw material) pcs/hour	600
Screw diameter mm	90
Long radius rate L/D	1:25
The max plasticizing capacity of HDPE kg/h	70
Clamping method	Booster cylinder
The mothed of cutting the pipe of material	Hot cutting knife
Max dimension of the mould(D×W×H)mm	400×450×550
The adjustment range of the thickness of the mould mm	200-400
Blowing pressure Mpa	0.5-0.7
Gas consumption m3/min	0.6
Cooling water pressure Mpa	0.2-.03
The diameter of the circulation water pipe mm	20
The electric machinery power of extruder machine kw	30
The heating power of extruder machine kw	14
Total power KW	45
Appearance dimension of machine mm(L X W X H )	4000×2100×2200
Total weight T	4
Method of control	PLC computer control
The suitable raw material	PE/PP
