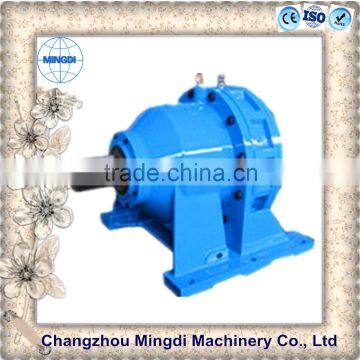

X/B Planetary Gearbox Parts Pin Wheel Cycloidal Speed Reducer Gear Box With Electric Motor for Wind Turbine Generator

1. Product Characteristics

A. Premier in-line drives as both a reducer and gearmotor;

B. Quiet, efficient and reliable operation with high torque density and compact sizes;

C. Interchangeable cast iron housings in foot, flanged or face mount configurations;

D. Available free-shaft, quill hollow shaft, C-face adaptors, shovel base, and top-mount inputs;

E. Mininimal vibration, low noise, low backlash and extended operational life;

F. The best product warranty with 24 months backs up the superb Cyclo product reputation.

2. Product Brief Introduction & Picture Show

The cycloidal speed reducer is superior to traditional gear mechanisms, since it only operates with rolling force and is not exposed to shear forces. By comparison with gears with contact loads, Cyclo drives are more resistant and can absorb  extreme shock loads by means of uniform

 load distribution over the power transmitting components. Cyclo drives and Cyclo drive geared motors are characterized by their reliability, long service life and outstandingefficiency, even under difficult conditions.

A. Cycloid reducer big reduction ratio, high efficiency: a reduction gear ratio is 9~87, the two-stage reduction gear ratio is 121 ~ 5133, multistage combination can reach tens of thousands, and the needle tooth meshing line type rolling friction, the meshing surface no relative sliding, so a reduction efficiency of 94%.

B. Pin wheel reducer smooth running, low noise: the teeth contact at the same time when in operation, the coincidence degree high, stable running, strong overload capacity, low vibration and noise, a variety of models, small noise.

C. The use of reliable, long life: because the main part is made of high carbon alloy steel quenching (HRC58-62), and then grinding, and cycloid gear and pin gear set mesh transfer to the pin gear form rolling friction pair, friction coefficient is small, so that the meshing zone no relative sliding, wear small, so durable.

D. Compact structure, small volume: compared with other reducer with the power of the above weight, small volume 1/3, as is the planetary transmission, the input shaft and the output shaft in the same axis, in order to obtain the smallest possible size.

MINGDI Brand Main Products Range Show

3. Company Profile & Workshop Glance

Changzhou Mingdi Machinery Co., Ltd. has started its own gearbox business since 2002, we attach importance to the research and development of new product. We offer big range of gearboxes, including cylindrical hard-tooth-face gearbox, P planetary  gearbox, RV worm gearbox, ZLYJ plastic extruder gearbox, customized gearbox & gear etc, with a strong advantage on cylindrical hard-tooth-face gearbox and customized gearbox, we follow strict qualitycontrol system from the start to end.

4. Product Applications

Planetary cycloid electric motor speed reducer is a kind of planetary transmission principle, adopts the cycloid pin gear meshing, advanced design, the slowdown with novel structure.

The reducer can be widely used in various transmission mechanical deceleration of structure , such as : lifting, tansport, mining, metallurgy, petrochemical, textile, printing ans dyeing, light industry, pharmaceuticals, food machinery.

5. Our Competitive Advantages

A. Ability to produce customerized products as request.

B. Complete processing & testing equipment.

C. Our strong belife is quality is our culture and quality is the soul of enterprise.

D. Competitive price: we can give you an edge over your competitors.

E. We ensure to make immediate response on your enquiries or any queries in 12 hours.

6. FAQ

Q: What's your business type?
A: We are a manufacturer, and also have import & export trading right.

Q: What's your main products?
A: Power transmission gearboxes and gears.
Such as: industrial HB gearbox, worm/helical/bevel/planetary gearbox, heavy duty gearbox, gearbox for crane/extruder/excavator/rolling mill/cement mill, etc.

Q: What about your warranty?

A:12 to 18 months warranty according to different products and lifetime service.

Q: What's your MOQ?
A: 1 set for different kinds of gearboxes, and 5 pcs for gears.

Q: Can you supply customized gearboxes or gears?
A: Yes, we can customize any kinds of gear and gearbox as per your requirement or drawings.

Q: What information should be given, if I want to buy gearbox?
A: Gearbox ratio, gear type, speed ratio, input / output speed, rated power, mounting position,  More details will be welcomed.

7. My Contact Way

If any problems or queries, please just feel free to contact me at your convenience, wish you all a wonderful day and we sincerely look forward to your enquires.
