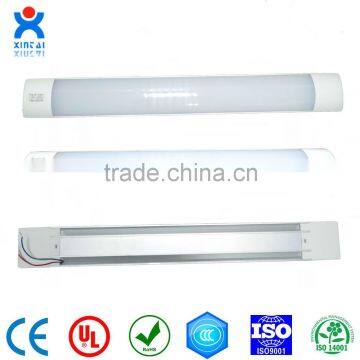

NEW 23mm ultra thin Design 18w 2 feet flat led tube with wide light angle
- Xiamen
- T/T Credit Card PayPal
You May Like
-
Hot LED flat tube 18W 36W with different cap
-
36w LED flat tube light led batten light replace normal T8 fluorescent batten
-
18w LED flat tube light no need holder
-
Indoor small spotlight 3w 4w 5w 6w AC220v-240v led mini spotlight with GU10 base
-
Hot sale High Quality LED Gu10 CoB Spotlight 3w 5w 7W
-
AC/ DC12v MR16 LED aluminum Spotlight 3w 4w 5w
Product Details
| LED Light Source | Epistar | Warranty(Years) | 3 | |
| Input Voltage(V) | AC100-265V | Lamp Power(W) | 18 | |
| Lamp Luminous Flux(lm) | 1580 | Lamp Luminous Efficiency(lm/w) | 90 | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -20, 45 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP40 | Certification | CE | |
| Place of Origin | Fujian, China | Brand Name | XINTAI | |
| Model Number | Other, LED Flat panel ighting |
Product Description
NEW 23mm ultra thin Design 18w 2 feet flat led tube
A. Specification
LED Chips | |
LED Chips: | Epstar |
Or BRIDGELUX, CREE , SAN'AN etc. | |
Total Wattage: | 18W |
Luminous Flux:> | 1580 lm |
Light Efficiency: | 90 lm/w |
Color Temperature: | Warm white: 2700k—3500k |
Natural white: 3800k—4800k | |
Cool white: 5500k—6500k | |
CRI (Ra): | 80 |
Beam Angle: | 120 |
Power factor> | 0.9 |
IP | 40 |
Fixture | |
Fixture Material | Aluminium |
Fixture Color: | White |
Driver | |
Driver Mode: | Constant Current Output Driver |
Packing | |
Inner Packing: | L*W*H=629mmX84mmX48mm |
Outer Packing: | L*W*H=645mmX264mmX190mm |
General Specification | |
Voltage: | 100-240V |
Lifespan: | 50000 Hours |
Warranty: | 3Years |
Certification: | 3C, CE, ROHS |
OEM Service | Offered |
ODM Service | Offered |
Free Samples | Offered |
More Choices in size watt and lumen for you!
| item # | wat | Size (L*W*H) | Lumen |
| XT-TE09-B | 9 W | 300*75*23.5mm | 3000k:765lm±5% ; 6000k:790lm±5% |
| XT-TE18-B | 18 | 600*75*23.5mm | 3000k:1530lm±5% ; 6000k:1580lm±5% |
| XT-TE27-B | 27 | 900*75*23.5mm | 3000k:2295lm±5%; 6000k:2370lm±5% |
| XT-TE36-B | 36 | 1200*75*23.5 | 3000k:3060lm±5% ; 6000k:3160lm±5% |
B. Features:
4. CE and ROHS certificates
5. 50000 hours Long lifespan
C. EASY Installation
E. Aging Test
F. Application
Jewerly shop , office, Shoipping mall, Factory ETC.
