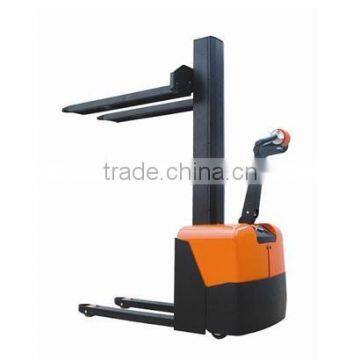

Power Stacker --CME-M
Negotiable
/ Set
1 Set(Min.Order)
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Cheuk's | Model Number | RSP13 | |
| Dimension(L*W*H) | 1800*850*2040mm | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | No overseas service provided |
Product Description
The specification of Power Stacker--CME-M
1KG=2.2LB 1INCH=25.4MM
| Up to h3 mm | ACTUAL CAPACITY (Q) kg | |
| 1600 | 1000 | 700 |
| 2000 | 1000 | 500 |
| Load centre distance (C)mm | 600 | 700 |
| Characterris tics | 1.1 | Model of manufacture | unit | CME1016M | CME1020M |
| 1.2 | Drive:electric(electric,diesel,petrol,gas,mains electric) | electric | |||
| 1.3 | Type of operation(hand,pedestrian,stand on,rider seated, order-picker) | pedestrian | |||
| 1.4 | Load Capacity /rated load | Q (kg) | 1000 | ||
| 1.5 | Load center distance | C mm | 600 | ||
| 1.6 | Load distance,centre of drive axle to fork | X mm | 742 | ||
| 1.7 | Wheelbase | y mm | 1170 | ||
| Weights | 2.1 | Service Weight | Kg | 670 | 700 |
| 2.2 | Axle loading ,laden front/rear | Kg | 905/765 | 920/780 | |
| 2.3 | Axle loading, unladen front/rear | Kg | 385/285 | 400/300 | |
| Wheels, Chassis | 3.1 | Tyres:Solid rubber,superelastic,pneumatic ,polyurethane | polyurethane | ||
| 3.2 | Tyre size ,front | 252x89 | |||
| 3.3 | Tyre size ,rear | 84x70 | |||
| 3.4 | Additional wheels(dimensions) | 100x40 | |||
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1x+2/4 | |||
| 3.6 | Track width(front) | b10(mm) | 500 | ||
| 3.7 | Track width(rear) | b11(mm) | 1000-1370 | ||
| Basic Dimensions | 4.1 | Lowered mast height | h1(mm) | 1970 | 2370 |
| 4.2 | Free lift | h2(mm) | 1530 | 1930 | |
| 4.3 | Lift height | h3(mm) | 1530 | 1930 | |
| 4.4 | Extended mast height | h4(mm) | 1970 | 2490 | |
| 4.5 | Height of tiller in drive position min./max | h13(mm) | 763/1235 | ||
| 4.6 | Lowered height | h13 (mm) | 40 | ||
| 4.7 | Overall length | h1(mm) | 1765 | 1765 | |
| 4.8 | Length to face of forks | l1(mm) | 613 | ||
| 4.9 | Overall width | b1(mm) | 692 | ||
| 4.10 | Fork dimensions | s/e/l(mm) | 35/100/1150 | ||
| 4.11 | width over forks | b3(mm) | 282-800 | ||
| 4.12 | Ground clearance,centre of wheelbase | m2(mm) | 25 | ||
| 4.13 | Aisle width for pallets 1000x1200 crossways | Ast mm | 2200 | 2300 | |
| 4.14 | Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2150 | ||
| 4.15 | Turning radius | Wa(mm) | 1360 | ||
| Performance Data | 5.1 | Travel speed,laden/unladen | km/h | 5/5.2 | |
| 5.2 | Lift speed,laden/unladen | mm/s | 76/197 | ||
| 5.3 | Lowering speed,laden/unladen | mm/s | 106/110 | ||
| 5.4 | Max.gradient performance,laden/unladen | % | 5/10 | ||
| 5.5 | Service brake | electromagnetic | |||
| E-Motor | 6.1 | Drive motor rating | kw | 0.75 | |
| 6.2 | Lift motor rating | kw | 1.2 | ||
| 6.3 | Battery acc.to BS,no | no | |||
| 6.4 | Battery voltage,nominal capacity | V/Ah | 2×12/100 | ||
| 6.5 | Type of drive control | MOSFET Control | |||
| Other | 7.1 | Sound level at driver’s ear acc.to EN12053 | dB(A) | <70 | |
