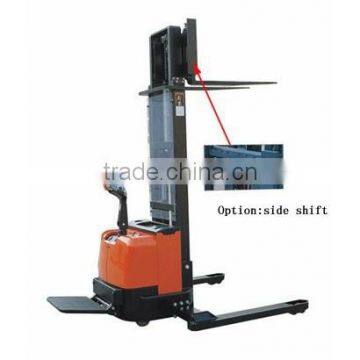

Power Stacker --CDD1.2AK/CDD1.5AK

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanghai, China
Brand Name	Cheuk's	Model Number	CDD1.2AK/CDD1.5AK
Dimension(LWH)	18008502040mm	Certification	CE
Warranty	1 year	After-sales Service Provided	No overseas service provided

Product Description

The basic information of Power Stacker--CDD1.2AK/CDD1.5AK

1.auto lifting function, can get into container for operation
2.H type mast, good looking, safe and durable
3.equiped with control system and pump, excellent performance
4.large capacity battery, for long time usage
5.adjustable straggle, safe and reliable
6.can set up sideway

The specification of Power Stacker--CDD1.2AK/CDD1.5AK

1KG=2.2LB 1INCH=25.4MM

Characteristic	1.1	Model		unit	CDD1.2AK/CDD1.5AK
	1.2	Power(battery,diesel,petrol,natural gas, manual)			electric
	1.3	standing,Manner of operation:hand, pedestran,seated,sorting-picker			pedestran/standing
	1.4	Load Capacity	Q	kg	1200/1500
	1.5	Load Centre distance	C	mm	500
Dimensions	2.1	Overall length	L	mm	1891
	2.2	Overall width	b	mm	1197~1520
	2.3	Overall height	H2	mm	2175	2375	2508
	2.4	Lifting height	H	mm	4500	5000	5500
	2.5	Max working height	H1	mm	5363	5873	6373
	2.6	Free lifting height	H3	mm	1550	1717	1884
	2.7	Fork dimensions	L1×b2×m	mm	1000×100×35
	2.8	Fork outer width	b1	mm	210~950
	2.9	Wheelbase	Y	mm	1365
	2.10	Max side shift		mm	100
	2.11	Turning radius	Wa	mm	1600
Performance	3.1	Travel speed	load	km/h	5.2
	3.2	Travel speed	unload	km/h	6.8
	3.3	Lifting speed	load	mm/s	120
	3.4	Lifting speed	unload	mm/s	170
	3.5	Falling speed	load	mm/s	150
	3.6	Falling speed	unload	mm/s	128
	3.7	Brakes			electromagnetic
Motor	4.1	Drive motor		KW	1.2
	4.2	Lifting motor		KW	3
	4.3	Battery voltage,normal capacity K5		Ah/V	240/24
Weight	5.1	Weight		kg	1195	1245	1295
Weight	5.2	Battery weight		kg	235
