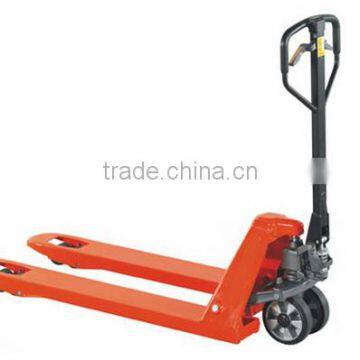

Fame proof hand pallet truck-MEGA26

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuk's
Model Number	MEGA26		Lift Drive / Actuation	Hand

Product Description

The specification of Hand Pallet Truck MEGA26

Characteris tics	1.2	Manufacturer’s type designation		MeGa26
	1.4	Type of operation:hand,pedestrian, stand ing,seated, order-picker)		hand
	1.5	Load Capacity /rated load	Q kg	2600
	1.6	Load center distance	c mm	400	500	600	600
	1.8	Load distance, centre of drive axle to fork	x mm	528	728	878	948
	1.9	Wheelbase	y mm	877	1077	1227	1297
Weights	2.1	service Weight	kg	69	73	76	77
Wheel	3.1	Tyres:solid rubber, superelastic, pneumatic, polyurethane)		polyurethane
	3.2	Tyre size, front	mm	Φ200X50
	3.3	Tyre size, rear	mm	Φ82x70/Φ82x93
	3.5	Wheels, number front/re(x=driven wheels)		2/2 or 2/4
	3.6	Track width,front	b10 mm	130
	3.7	Track width,rear	b11 mm	360/380/525
Dimensions	4.4	Lowered mast height	h3 mm	115
	4.9	Height of tiller in drive position	h14 mm	1228
	4.14	Max Fork height	h12 mm	200
	4.15	Lowered height	h13 mm	85
	4.19	Overall length	l1 mm	1212	1412	1562	1632
	4.2	Length to face of forks	l2 mm	412
	4.21	Overall width	b1 mm	520/540/685
	4.22	Fork dimensions	s/e/l mm	53/160/800		53/160/1500	53/160/1220
	4.25	Width over forks	b5 mm	520/540/685
	4.32	Ground clearance, center of wheelbase	m2 mm	32
	4.34	Aisle width for pallets 800x1200 lengthways	Ast mm	1992	2028	2073	2102
	4.35	Turning radius	Wa mm	1010	1210	1360	1430
Performance	5.3	Lowering speed, laden/unladen	mm/s	76/15
