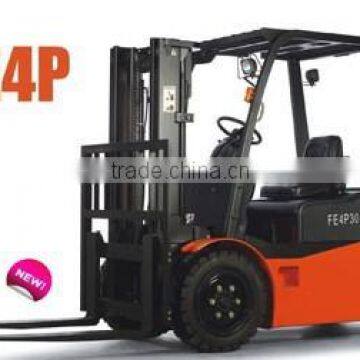

Express Battery forklift truck FE4P series

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanghai, China
Brand Name	cheuk's	Model Number	FE4P series
Type	Powered Pallet Truck	Power Souce	DC Motor
Rated Loading Capacity	1.8t-3t	Max. Lifting Height	6m
Min. Lifting Height	3m	Fork Length	122mm
Fork Width	1150mm	Overall Dimensions	3350/3450x1150mm
Certification	CE/ISO9001	After-sales Service Provided	No overseas service provided

Product Description

The specification of Battery forklift truck FE4P series

dentification	Manufacture(abbreviation)		Cheuklift
	Manufacturer’s type designation	unit	FE4P18	FE4P18AC	FE4P20	FE4P20AC
	Drive:electric(battery or mains),diesel, petrol gas,manual		electric
	Type of operation:hand,seated,pedestrian, standing, order-picker		seated
	Load Capacity /rated load	Q(kg)	1800		2000
	Load center distance	C(mm)	500
	Load distance, centre of drive axle to fork	x(mm)	473
	Wheelbase	y(mm)	1420		1520
Weights	Service Weight incl.battery(see line 6.5)	kg	3860		4040
	Axle loading, laden front/rear	kg	4870/790		5200/840
	Axle loading, unladen front/rear	kg	1580/2280		1650/2390
Wheels, Chassis	Type:solid rubber, superelastic,pneumatic, polyurethane front/rear		Pneumatic/Pneumatic
	Tyres size, front		7.00-12-12PR
	Tyres size, rear		18x7-8-14PR
Basic Dimensions	Mast/fork carriage tilt forward/backward	α/β(°)	6/8
	Lowered mast height	h1(mm)	2010
	Free lift	h2(mm)	140
	Lift height	h3(mm)	3000
	Extended mast height	h4(mm)	4040
	Overhead load guard height	h6(mm)	2110
	Seat height/standing height	h7(mm)	1058
	Coupling height	h10(mm)	210
	Overall length	l1(mm)	3350		3450
	Length to face of forks	l2(mm)	2280		2380
	Overall width	b1(mm)	1150
	Fork dimensions	s/e/l(mm)	40x122x1150
	Fork carriage ISO 2328,class/typeA,B		ISO 2/A
	Fork carriage width	b3(mm)	1040
	Ground clearance,laden, under mast	m1(mm)	100
	Ground clearance, center of wheelbase	m2(mm)	110
	Aisle width for pallets 1000x1200 crossways	Ast(mm)	3990		4080
	Aisle width for pallets 800x1200 lengthways	Ast(mm)	3690		3780
	Turning radius	Wa(mm)	2020		2110
Performance Data	Travel Speed, laden/unladen	km/h	11/12	13/14	11/12	13/14
	Lift speed, laden/unladen	mm/s	280/400		260/400
	Lowering speed, laden/unladen	mm/s	400/400		450/400
	Drawbar pull, laden/unladen S2 60min	N	8500/6000	10000/7000	8500/6000	10000/7000
	Max.gradient performance, laden/unladen	%	12/15	14/17	12/15	14/17
	Service brake		Hydro.

Identification	Manufacture(abbreviation)		Cheuklift
	Manufacturer’s type designation	unit	FE4P25	FE4P25AC	FE4P30	FE4P30AC
	Drive:electric(battery or mains),diesel, petrol gas,manual		electric
	Type of operation:hand,seated,pedestrian, standing, order-picker		seated
	Load Capacity /rated load	Q(kg)	2500		3000
	Load center distance	C(mm)	500
	Load distance, centre of drive axle to fork	x(mm)	488
	Wheelbase	y(mm)	1520		1720
Weights	Service Weight incl.battery(see line 6.5)	kg	4190		5200
	Axle loading, laden front/rear	kg	5750/940		7050/1150
	Axle loading, unladen front/rear	kg	1720/2470		2390/2810
Wheels, Chassis	Type:solid rubber, superelastic, pneumatic,polyurethane front/rear		Pneumatic/Pneumatic
	Tyres size, front		7.00-12-12PR		28x9-15-12PR
	Tyres size, rear		18x7-8-14PR		18x7-8-14PR
	Wheels, number front/rear(x=driven wheels)		2x/2
	Track width,front	b10(mm)	960		1000
	Track width,rear	b11(mm)	950		980
Basic Dimensions	Mast/fork carriage tilt forward/backward	α/β(°)	6/8
	Lowered mast height	h1(mm)	2010		2080
	Free lift	h2(mm)	140		145
	Lift height	h3(mm)	3000
	Extended mast height	h4(mm)	4040		4255
	Overhead load guard height	h6(mm)	2110		2115
	Seat height/standing height	h7(mm)	1058		1063
	Coupling height	h10(mm)	210
	Overall length	l1(mm)	3484		3702
	Length to face of forks	l2(mm)	2414		2632
	Overall width	b1(mm)	1150		1225
	Fork dimensions	s/e/l(mm)	40x122x1150		45x125x1150
	Fork carriage ISO 2328,class/typeA,B		ISO 2/A		ISO 3/A
