Product Details
Place of Origin | China | Brand Name | HYT | |
Model Number | TC-560 | Type | Handheld | |
Dimensions | 120mm*54mm*33mm | Frequency Range | UHF :400-470MHz | |
Storage Channel | 16 | Talk Range | 3-7km |
Product Description

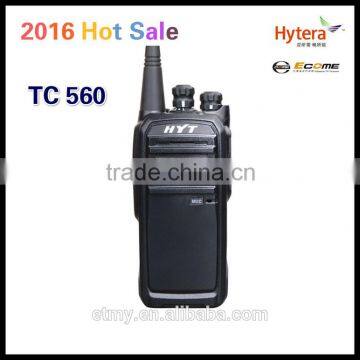

Hytera TC-560 16CH uhf hand walkie talkie
Specifications
strong penetrability , long distance call , wearproof material , Ultra-long Standby Time and clear timbre.
General | |
Frequency Range | 400-470MHz |
Channel Capacity | 16 |
Channel Spacing | 25 /12.5KHz |
Operating Voltage | 7.4V DC |
Battery | 1300mAh/1650mAh (Li-ion) |
Battery Life(5-5-90 Duty Cycle) | More than 10/13 hrs |
Frequency Stability | ±2.5ppm |
Operating Temperature | -20°C-+65°C |
Antenna Impedance | 50Ω |
Dimensions (H×W×D) (with battery, without antenna) | 120mm×54mm×33mm |
Weight (with antenna & battery) | 282g |
Transmitter | |
RF Power Output | 4W/1W |
Modulation | 16KΦF3E/11KΦF3E |
Spurious and Harmonics | -36dBm<1GHz -30dBm> 1GHz |
FM Noise | ≥40dB/35dB |
Audio Distortion | ≤5 % |
Receiver | |
Sensitivity | ≤0.25/0.28 μV |
Selectivity | 70/50dB |
Intermodulation | 60dB |
S/N | 43dB/38dB |
Rated Audio Power Output | 0.8W |
Rated Audio Distortion | ≤5% |
key feature
Long Battery Life
The 1300mAh high capacity Li-ion battery can secure a battery life up to 10 hours.
High/Low Power Switchable
For each channel, the power can be adjusted through the key pre-set as High/Low power switch. When the communication range is small, low power is of priority for battery saving.
Programmable 25 KHz /12.5 KHz Channel Spacing
For future adaptability, users can program the TC-320 channel spacing as 25KHz or 12.5KHz through programming software, no need to buy a new radio.
Monitor
This function is especially useful when receiving weak signal. Hold down MONI key, the activity in current channel can be monitored.
CTCSS/CDCSS and Squelch Tail Elimination
38 groups standard CTCSS and 83 groups standard CDCSS available. If your radio is set with CTCSS or CDCSS, both the interference from the same frequency and the squelch tail from communication termination or carrier disappearance can be eliminated.
Channel Scan
When scan is enabled, press the side key to start quick scan for all the channels in the scan list. The scan will stop or pause at the channel where a signal is detected.
Auto Battery Save
Radio enters “Battery Save” mode when no signal is received or there is no operation on the radio. This can prolong the battery life through lowering the battery consumption.
Low Battery Alert
Radio will alert users to charge the battery when it runs low.
Busy Channel Lockout(BCL)
BCL can prevent radio from receiving any unconfirmed signal and transmitting signal to any busy channel, keeping the channel clean and free of interference.
Time-out-timer (TOT)
This function is used to avoid time-out occupation of a channel. TOT restricts the maximum duration of each transmission, which not only can realize battery save and reduce the channel block time, but also can avoid the probability of channel occupation because of improper operations.
