Home > Products > Tungsten Carbide Rings & Rolls > From Manufacture Good Wear Resistance Tungsten Carbide Ring
From Manufacture Good Wear Resistance Tungsten Carbide Ring
- Any port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Various Types Custom OEM Customized Tungsten Carbide Mill Roll
-
Good Wear Resistance Tungsten Carbide Ring
-
Various High Wear Resistance Tungsten Carbide Ring
-
Stable Quality High Wear Resistance Tungsten Carbide Ring
-
high quality tungsten carbide knurled roller from factory
-
high quality carbide knurled roller from factory
Product Details
| Place of Origin | Hunan, China | Brand Name | Jin Tai Pai | |
| Model Number | various |
Product Description
Specification:
1. 100% raw material
2. 14 years experience
3. ISO 9001
4. OEM & ODM
5. Customized products are acceptable

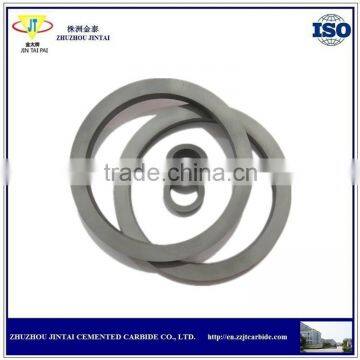

Display of Tungsten Carbide Rings
Any Grade is available as your request!
Non-standard Tungsten Carbide Rings are customized as your requirements!
Tungsten Carbide Rings with Common Grades
Grade | Physical and Mechanical Properties | Recommended Applications | ||
Density g/cm3 | Hardness no less than HRA(HV) | TRS Mpa | ||
YG6X | 14.8-15.1 | 91 | 1420 | For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress. |
YG6 | 14.7-15.1 | 89.5 | 1520 | For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm. |
YG8 | 14.6-14.9 | 89 | 1470 | For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts. |
YG8C | 14.5-14.9 | 88 | 1710 | Suitable set of percussive and rotating drilling and rotary impact masonry drill bit. |
YG11C | 14-14.4 | 86.5 | 2060 | Suitable for large drill chisel Insert button bits of hard rock flake or column. |
YG15 | 13.9-14.2 | 86.5 | 2060 | For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drinning and punching and impacting dies. |
YG20 | 13.4-13.8 | 83.5 | 2480 | For making punching and impacting dies for watch parts and musical instrunments springs, batterles shells and tooth pastes shells, etc., Also for making punching and impacting dies for steel balls of small diameters, screws and nuts, etc. |
YG20C | 13.4-13.8 | 82 | 2480 | For making cold heading and cold punching and impacting dies for standardized parts, bearings, bullets head and shell, etc. |
YK20 | 14.3-14.6 | 86 | 2250 | For wrapped percussive-Rotary drilling bits, drill hard rock better than hard rock. |
Any Grade will be acceptable as your requirements!
Customer NOTICE
To save your value time, please inform us of the following information:
1. Grade
2. Type/Dimension/Clear Drawing
3. Available tolerance
4. Order quantity for each type
5. Blanks or finished products
6. If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
Our Products Ranges
Tungsten Carbide Balls
Tungsten Carbide Rods
Tungsten Carbide Strips
Tungsten Carbide Plates
Tungsten Carbide Rollers
Tungsten Carbide Cutters
Tungsten Carbide Buttons
Tungsten Carbide Tire Studs
Tungsten Carbide Disc Cutters
Tungsten Carbide Drawing Dies
Tungsten Carbide Coal Drilling Bits
Tungsten Carbide Customized Molds
Tungsten Carbide Road-digging Teeth
Company Profile
Zhuzhou Jintai Cemented Carbide Co., Ltd
Packaging & Shipment
Contact Us
Pls contact us if you have any questions!
Contact Us
- Zhuzhou Jintai Cemented Carbide Co., Ltd.
- Contact nameChanghui Li Chat Now
- Phone0086-731-28520950
- AddressNo.508 Jinshan Road, Industrial Park of Jinshan, Hetang District, Zhuzhou, Hunan
