Steel Grating Mesh
- Tianjin Xingang
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | TianYue | |
| Model Number | tyd-089 |
Product Description
Specifications
Material: Galvanized Steel Wire&sheetType: Welded Mesh
Specification: can be customised
Use: drainage&sidewalk
ISO9001:2000
Steel Grating Mesh
Material:
low carbon steel wire, stainless steel wire, etc.
Characteristics:
high strength, light and firm structure, high load bearing, convenience for lifting; handsome appearance, durable-hot galvanizing surface, ventilation, lighting, heat elimination, explosion proof and anti skid.
Application:
steel structure platform, sidewalk, stail tread, drainage etc.
Packing:
pallet; wooden case
can be customised as your requirement.
Specification sheet:
| Bearing Bar | bearing bar spacing | ||||||||||
| Width*Thickness | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| mm | Weight (kg/m2) | ||||||||||
| 20X2 | 10.9 | 7.27 | 5.56 | 4.49 | 3.63 | 3.21 | 2.89 | 2.57 | 2.35 | 2.14 | 1.92 |
| 25X2 | 13.72 | 9.14 | 6.99 | 5.65 | 4.57 | 4.03 | 3.63 | 3.23 | 2.96 | 2.69 | 2.42 |
| 30X2 | 16.53 | 11.02 | 8.43 | 6.81 | 5.51 | 4.86 | 4.38 | 3.89 | 3.57 | 3.24 | 2.92 |
| 35X2 | 19.38 | 12.92 | 9.88 | 7.98 | 6.46 | 5.7 | 5.13 | 4.56 | 4.18 | 3.8 | 3.42 |
| 40X2 | 22.44 | 14.96 | 11.44 | 9.24 | 7.48 | 6.6 | 5.94 | 5.28 | 4.84 | 4.4 | 3.96 |
| 20X3 | 16.52 | 11.01 | 8.42 | 5.81 | 5.51 | 4.86 | 4.37 | 3.89 | 3.55 | 3.24 | 2.92 |
| 25X3 | 20.75 | 13.83 | 10.58 | 8.54 | 6.92 | 6.1 | 5.49 | 4.88 | 4.48 | 4.07 | 3.66 |
| 30x3 | 24.97 | 16.65 | 12.73 | 10.28 | 6.32 | 7.34 | 6.61 | 5.88 | 5.39 | 4.9 | 4.41 |
| 35x3 | 28.84 | 19.23 | 14.7 | 11.88 | 9.61 | 8.55 | 7.67 | 6.79 | 6.22 | 5.66 | 5.09 |
| 40x3 | 33.06 | 22.04 | 16.86 | 13.61 | 11.02 | 9.72 | 8.75 | 7.78 | 7.13 | 6.48 | 5.83 |
Note: the specification can be customised as your need.

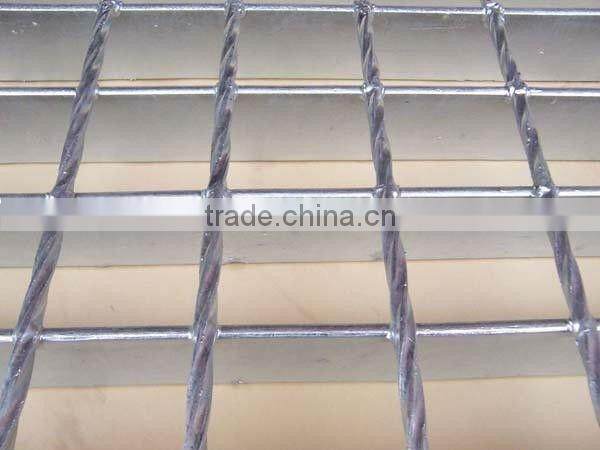

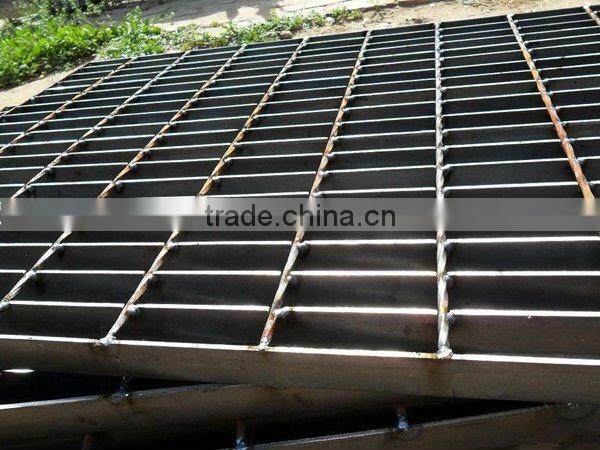

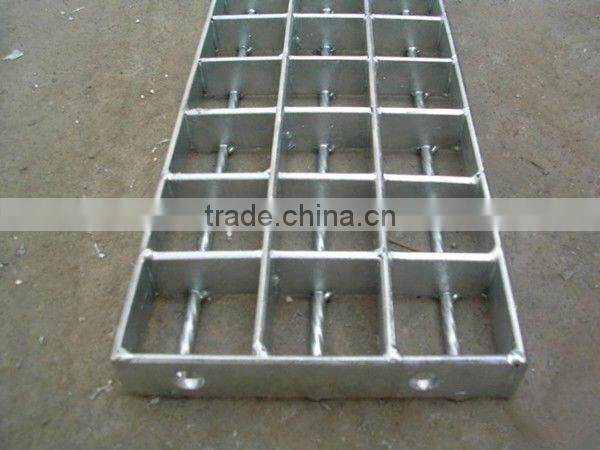

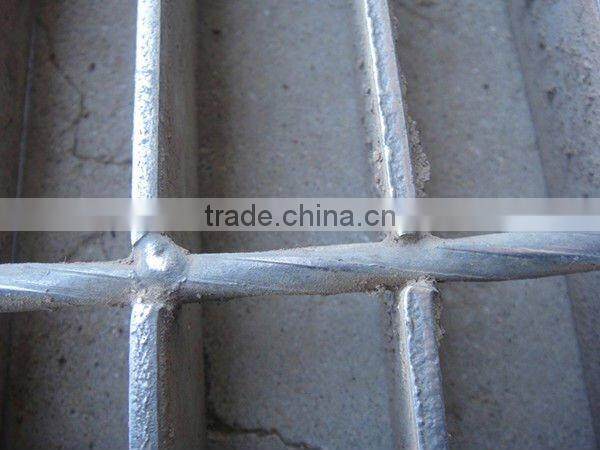

Pictures:
Certificate:
Wire-mesh manufacturer are looking for international cooperating.
Products involved welded wire mesh, woven wire mesh, chain link fence, and many types wire mesh machine, etc.
SGS and GB-TI/ISO9001:2000 certificate. Good quality and competitive price.
Any question or more info, please feels free to contact Anny.
Skype: tianyuewire1
Shijiazhuang Tianyue Honest Co.Ltd
Rm: Flat B, 1706, Amethyst Square, Heping Road
Shijiazhuang Hebei 050061 China.
