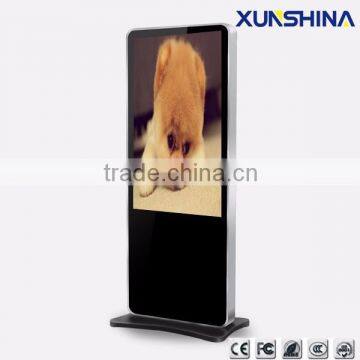

42 Inch Floor Standing Lcd Digital Signage Board

Main Hardware

Model No.

XS-4200HD-FNA

Panel

LG panel

Size

42”

Body Dimension

1821(H)x640(W)x70(D)mm

Body Material

Tempered glass+Al alloy

Frame Surface

Tempered glass

Display Color

16.7M(8-bit)

Response Time

6ms

Brightness

350cd/m2

Viewing Angle

178º/178º

Display Ratio

16:9

Display Area

930.24x523.26mm(V*H)

Backlight Life

30000H

Backlight Type

LED

Scan Frequency

60HZ

Resolution

1920x1080

Power

>=150W

Contrast

1200:1

Voltage

110-240V ( AC)

Net Weight

40KG

Main board

Operation System

Android 4.2.2

CPU

Allwinner A20, dual-core 1GHZ

RAM

1G(optional)

Nand

4G(optional)

Decoding Resolution

1080P

Play Mode

Support loop play, time play, spots playing and other play modes

Network

Support 3G, Ethernet, WIFI, wireless peripheral expansion

Video Format

Support WMV, AVI, FIV, RM. MVB, MPEG, TS, MP4, etc.

Image Format

Support BMP, JPEG, PNG, GIF

USB2.0 Port

x2

Serial Port

x3

Ethernet

x1, 10M/100M self-adaptive

SD Card

Compatible SD and TF card

SATA Port

Support built-in SATA hard disk

LVDS Output

x1, Can directly drive 50/ 60HZ LCD screen

HDMI Output

x1, Support 1080P output(At present, only quad-core motherboard supports LVDS and HDMI dual output)

Audio/Video Output

Support CVBS output, left and right channel output, built-in dual-channel 4R/20W, 8R/10W amplifier

RTC

Supported

Timer Switch

Supported

System Upgrade

Support USB upgrade, network upgrade
