Dried-fruit-packaging-machines

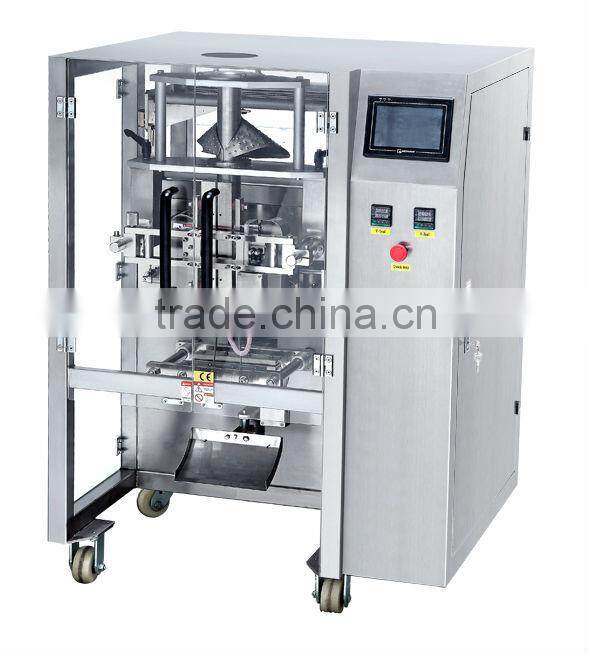

1. Automatic Bagging Machine:

Features

• Low cost high gain, high speed and efficiency.
• Famous brand PLC control system, large touch screen, convenient to operate
• Film drawing down system controlled by servo motor minimize the loss with complete automatic warn protection function
• It can completefeeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product    delivery when it equips with feeding and measuring equipment.

Specification:

• Bag size: Length: 80-300mm; Width: 80-200mm
• The maximum width of packing film:420 mm
• Thickness of film: 0.04-0.09mm
• Bag making mode:gusseted bag/pillow bag
• Air consumption:0.8Mps 0.5m3/min
• Power/voltage:    1N+PE/50HZ/AC220V/2.2KW
• Dimension (LxWXH): 1320×920×1392mm
• Weight:  450kg

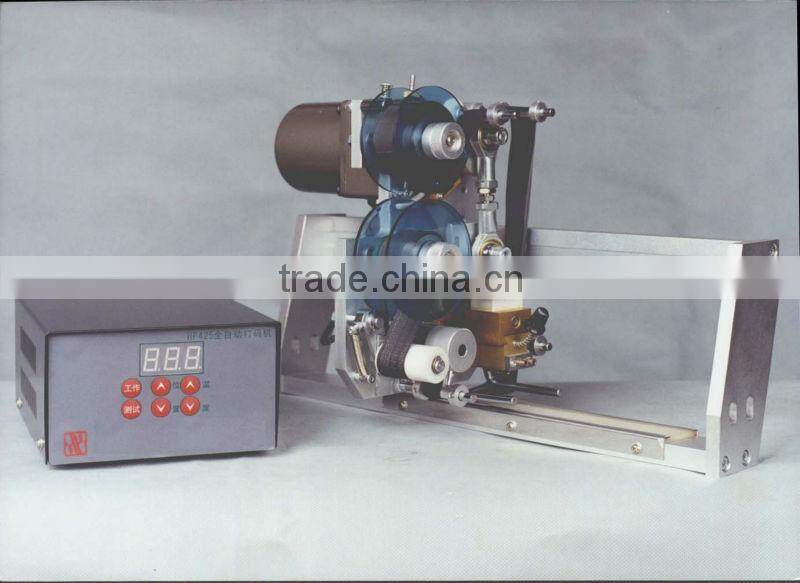

Ribbon Printing:

• Printing Area: Single line 4×35,15 characters
  •             Double lines 10×35,30 characters

• Speed: 120 times/min. max

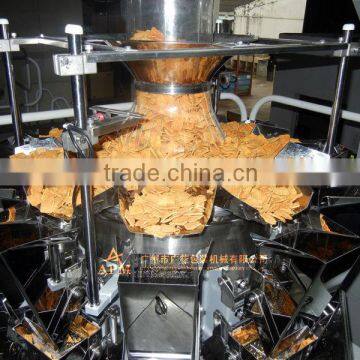

 2. 10 HEADS WEIGHER

1. Application

     It is suitable for weighing of granule, slice, roll or irregular shape products such as candy, sunflower seed, potato chip, happy fruit, peanut, jelly, freezing rice dumpling, biscuit, chocolate, nut, pet food, puffed food, small metal parts and plastic parts, etc.

2. Features

* Program recovery function can reduce operation failure.

* All the hoppers can be opened make cleaning easy and quick.

* The weight hopper can be preset to open in order (staggered) to avoid lockage with puffy or problem products.

* IP65 waterproof and dustproof design. It's easy to clean and maintain.

* The function of measurement by counting pieces or components t satisfy your various requirements.

2. Technical parameter

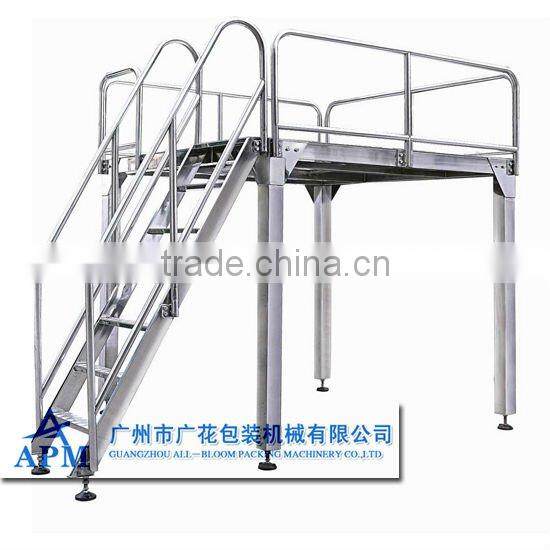

3. Supporting platform

Features:

• The plane is about 4 square meters, it have safety barriers and stairs.
•
• The material is spray painting.
•
• Dimension(mm):1800(L)*1800(W)* 2220(H)

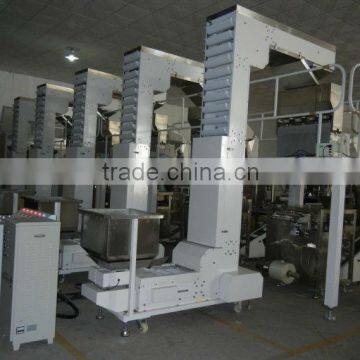

4. Z type conveyor:

Features

The conveyer is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc. For the lifting machine, the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.

Specification

The highness of lifting   3m -10m ( it can adjust according to customer’s requirement.)

     lifting quantity: 12cubic meter/hour

     power           550w

     voltage         380v

Specification customized; material: carbon steel plastic-spray or stainless steel; the part contacting with food is food grade plastic.
