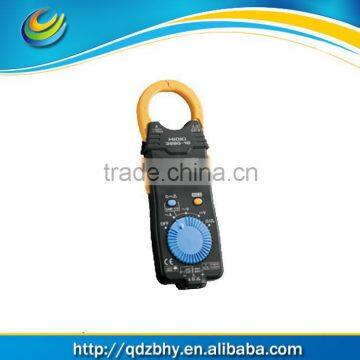

Hioki 3280-10 Clamp Hitester

FOB Price

USD $58 - $58 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1000 A , clamp aperture: 33 mm(1.30 in) dia.

Light 100 g(3.5 oz), and Slim 16 mm(0.63 in)

Independent-opening double-lever design

Slim body design, allows easy clamping even for narrow conductors

No metal (iron core) exposure, ensuring enhanced safety

AC Current range	42.00 to 1000 A AC, 3 ranges (±1.5 % rdg. ±5 dgt. at 50 or 60Hz), Average rectifier effective value
AC Voltage range	4.200 to 600 V AC, 4 ranges (±2.3 % rdg. ±8 dgt. at 50 or 60Hz), Average rectifier effective value
DC Voltage range	420.0 mV to 600 V DC, 5 ranges (±1.3 % rdg. ±4 dgt.)
Other functions	Resistance: 420.0 to 42.00 M-ohm, 6 ranges, Accuracy:±2.0 % rdg. ±4 dgt. (at 420 to 420 k-ohm range),Continuity: 420.0 ohm (Buzzer sounds at approx. 50 ohm or less)
Analog output	None
Frequency characteristics (at AC current / voltage)	AC current: 50/60 Hz, AC voltage: 50 to 500 Hz
Display section	Digital / LCD, maximum 4199 dgt.
Sampling rate	2.5 times/sec or 1 times/3 sec
Max. circuit voltage	600 V AC rms (insulated wire)
Power supply	CR2032 (3 VDC) × 1, Continuous use 150 hours
Core jaw dia.	Ø 33 mm(1.30 in)
Dimensions, mass	57 mm(2.24 in)W × 175 mm(6.89 in)H × 16 mm(0.63 in)D, 100 g (22.44 oz)
Accessories	TEST LEAD 9208 (1), CARRYING CASE 9398 (1)
