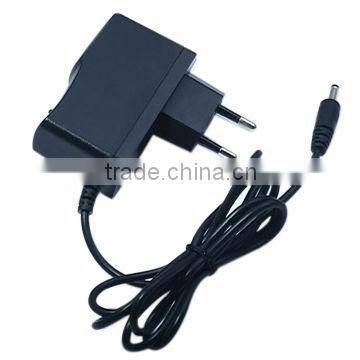

5v 2a ac power adapter for router
- Shenzhen
- Credit Card
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | hylook | |
Model Number | HL-W05-020 | Output Type | DC | |
Connection | Plug In |
Product Description
Specifications
5v 2a ac power adapter for router1.Input:AC110-240V 50/60HZ
2.Output:DC 5v 2a
tection:OVP,OCP SCP
5v 2a ac power adapter for router
1.Features:
- Input:AC 110-240V 50/60HZ
- Output:DC 12V 1A 1.5A 2A /9V 0.35a 1A 1.3A 1.5A 2A /8V 1A 1.3A 1.4A 1.5A 2A/5v 1A 1.5A 2A 2.5A 3A
- US,EU, AU,UK plug
- DC tips: you customize
- Output DC wire:1.2M
- Ripple noise:200mv
- Line regulation:+-5%
- load regulation:+-5%
2.Technical specification:
Input voltage Rated Voltage: 100~240Vac |
Variation Range: 80V~280Vac Input Frequency Rated Frequency: 50/60HZ Variation Frequency: 47~63Hz |
Input current 0.5Amax. at any input voltage and rated, DC output rated load. |
Inrush Current 30Amax. @ 264Vac input Efficiency: 80% min at 100Vac input and output rated .Load. |
Turn on delay time: 80% min at 100Vac input and output rated .Load. 3S max. @ 100 Vac to 240 Vac input & Full load Rise time 20mS max. @ Rated load Hold up time: 5mS min. @ Full load &230Vac/50Hz input turn off at worst case |
Short circuit protection: The power supply will be auto recovered when short circuit faults remove. Over current Protection: The power supply will be auto recovered when over current faults remove Over Voltage Protection: The power supply will auto recovered when faults remove 120%~150%. |
Environmental requirement: Operating Temperature: 0~40°C ,full load , normal operation. Storage Temperature: -20~80°C with package Relative Humidity: 10%(0°C) ~90%(40°C) RH |
4.Warranty:
1. We provide 1 year warranty.
2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems please feel free to contact us.You will receive a prompt reply from us
5.Remarks:
1. delivery time:7 days (if quantity more than 4000Pcs,it will subject to our final
confirmation)
2. Payment: TT or western Union
6.About us :
our company is the professional manufacturer and specialized in power adapter of laptop ,cctv camera ,mobile phone ,router, tablet etc
7.Photos:
8.Reliability
- 1)Heat-resistance: The switch power supply shall be stored at a temperature of 55+/-2 °C for 16 hours. Then No distortion and
(Storage) it shall be subjected to standard astrospheres conditions for 2 hours,
- 2)Heat resistance: The switch power supply shall be placed at a temperature of 25+/-2 °C and operating at No abnormity
(Operation) full load for 4 hours. Measurement shall be made.
- (3)Cold-resistance: The switch power supply shall be stored at a temperature of -20+/-2 °C for 16 hours. No distortion and
- (Storage) Then it shall be subjected to standard astrospheres conditions for 2 hour, No function error
after which measurement shall be made.
- 4)Cold-resistance: The SMPS shall be placed at a temperature of 0+/-2 °C and operating at No abnormity
(Operation) rate75% full load for 4 hours. Measurement shall be made.
- 5)Body surface temp: at a entironment temperature of 23+/-2 °C , 100VAC/2.0A load ≤65°C
For 2 hours, measure central section of sueface (thermoelectric couple method)
- 6) M.T.B.F: 50K Hours At 25°C With 80% Loading No abnormity
- 7) Life : Average Life Expectancy Or 3 Years
9.other populau products of our company:
ac adapter for epson pos printer:
