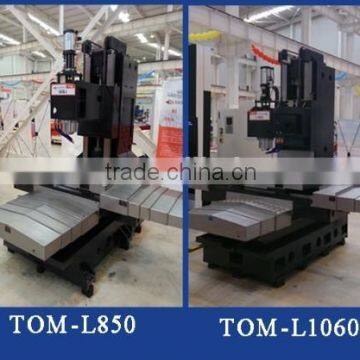

High precision TOM-L1060 Two axis rail series vertical CNC milling machine frame

mm                     model

TOM-L1060

New model TOM- L1060

        Dimension of worktable surface

600×1300

600×1300

Right and left stroke (X)

1000

1000

Front and Rear stroke (Y)

600

600

Up and down stroke  (Z)

600

600

distance between Spindle center to column guide rail

655

660

distance between the spindle to the work surface

70-670

70-670

The workbench T slot (number - size x spacing)

5-18*100

5-18*100

The spindle taper hole (model/install size)

BT40/ Ø150

BT40/ Ø150

Speed rotate speed

8000rpm

8000rpm

X.Y.Z axis ball screw specifications

4012

4012

X.Y.Z shaft  moving speed(m/min)

24,24,18

24,24,18

X axis rail specifications

MSA45LA

MSA45LA

Y axis rail specifications

MSA55LA

MSA55LA

Z axis guide ways

sliding guide

sliding guide

X.Y.Z motor connection way

Direct connection

Direct connection

Recommend selection of main motor parameters (power KW)

7.5

7.5

Recommend choose X.Y.Z axis motor parameters (NM) of torque

12,16,16

12,16,16

Guide way cover bracket (X, Y, Z)

520,303,275

520,303,275

height of Lathe bed pad

50

50

 Max loading of worktable kg

800Kg

800Kg

machine net weight

6.5t

5t

Note

Type column

“Type column

Note: 1. In the table, data with a (*) is  the main shaft center to the slider mounting surface (slider and the installation of the spindle box body surface).

    2. The spindle speed is 10000 RPM and 12000 RPM and 15000 RPM;Axis as the center water spray, water ring, spindle and the spindle motor straight type belongs to the special orders, special when placing order, please indicate.

3. The company at any time to keep the study to improve, so we have right to keep change machine technical parameters of the power of light changes without prior notice. Hope you can understand
