Home > Products > spindle > cnc BT50-190-3 5.5kw-7.5kw Belt Drive milling Spindle used in cnc machine center

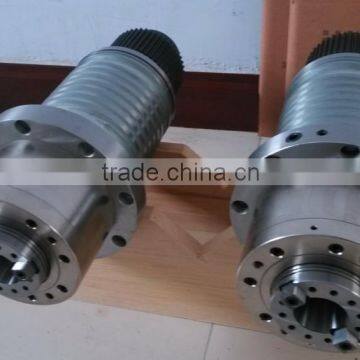

cnc BT50-190-3 5.5kw-7.5kw Belt Drive milling Spindle used in cnc machine center
USD $2,475 - $2,550
/ Set
5 Sets(Min.Order)
- 200 Set / Sets per Month
- Qingdao
- Credit Card
You May Like
-
3.0kw-2 high speed ATC ISO 20 SPINDLE
-
Mechanical Spindle for Turning and cnc lathe machine TCK 4530D -1 /CK 140A2-4/
-
BT 40 Direct Drive Spindle for cnc machine center 2014Hot !spindle
-
cnc BT 40-1 Direct coupled Drive Spindle for cnc machine center 2014Hot !spindle
-
7.5kw cnc BT40-120mm dia Belt Drive Spindle used in cnc machine center
-
CK 200A2-6-2 Mechanical Spindle for Turning and used in cnc turning machine
Product Details
| Place of Origin | Shandong, China | Brand Name | Haina | |
| Model Number | HNZ-BT50-190 | Application | Other, machine center | |
| Drive | Belt Drive | Operating Speed | 6000rpm |
Product Description
Specifications
Joint of nose : BT 50Function:used in cnc machine center
Speed(rpm):6000
Belt driven spindle
Dia:190mm
Cnc BT50-190-3 5.5kw-7.5kw Belt Drive milling Spindle used in cnc machine center
Product Description
Brand name: Haina
Spindle type:Joint of nose : BT 50
Function:used in cnc machine center
Speed(rpm):6000
Belt driven spindle
Installation way:Vertical
Dia:190mm
Installation way:Vertical
Spindle motor: 5.5kw-7.5kw
Bearing type:7018*3 7016*2
Loading / unloading force:250KGF/900KGF
Flanges diameter:245mm
Balance Grade: G1
Standard Configuration: Disc springs are Germany made , pull claws are Taiwanmade
The runout off of spindle is less than 3um ,Test rod clamp at 300mm, the runout off is less than 8um
Packaging & Shipping
Contact Us
- Taian Haina Spindle Science & Technology Co., Ltd.
- Contact namedebbie wang Chat Now
- Phone86-0538-8225686
- AddressHuangjiazhuang Village, Shanggao St. Office, Taishan Dist.
