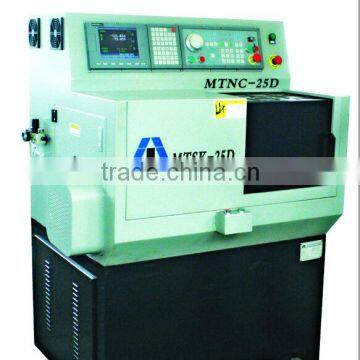

small CNC lathe for machining small parts

FOB Price

USD $35,000 - $37,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Longitudinal
CNC or Not	CNC	Automatic Grade	Automatic
Place of Origin	Christmas Island	Brand Name	HaiNa
Model Number	CNC-20 F	Voltage	380v
Power(W)	6kw	Dimension(LWH)	13808401480mm
Weight	1750kg	Certification	ISO:9001
After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

1 high efficiency,reasonable structure
Precision Lathe Operations on a CNC Mill

Parts	Type Items	CNC-20F
Main Parameter	Maximum diameter of processing the bar	Φ20
	Maximum length of processing parts	170
	Maximum drilling diameter	Φ6 / Φ8
	Maximum axial tapping screw	M6/CU M8 / M6/CU M10
	Total power	6KW
Spindle Parameter	Spindle speed range	200-10000r/min
	Spindle rotatable	Infinitely variable
	Height from Spindle center to table	950mm
	Spindle motor power	3KW
Feed section Parameter	X-axis screw specifications	1605
	Y / Z axis screw specifications	2010
	X / Y axis rails Specifications	20
	Z axis rails Specifications	25
	X(with holding brake),Y,Z axis Servo motor rated torque	0.75kw
Toolholder Partial Parameters	External Turning Tool	5 pieces
	External Turning Tool Specifications	10×10×120
	Non-rotating hole processing tool	ER16(4 pieces)
	Lateral rotary power tool	ER16(4 pieces)
	Dynamic milling head Power	0.4KW
	Dynamic milling head SpeedRange	50-4000(Servo)
Others	Lubrication pump power	25W
Others	Cooling system motor power	0.25KW

CNC-20 F series precision CNC Longitudinal turning and milling complex lathe

Precision Lathe Operations on a CNC Mill

CNC Mill Turn
