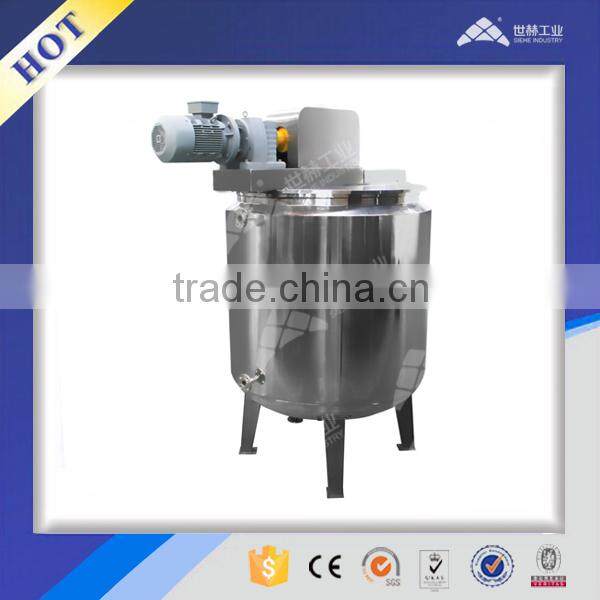

High Quality Sugar Dissolving Tanks Kettle Can be Customized

1. Intro

Multi-function Powerful Dispersing Mixer integrates High-shear Emulsifier, High-speed Disperser and Low-speed strong Mixer into one machine.

2. Application

a. It is especially suitable for mid-and-high viscous a materials and thixotropic materials. Dispersing, emulsifying and mixing can go on at the same time result in ideal effect.

b. The machine is suitable for mixing, blending, homogenizing, dissolving materials. It is characterized in easy operation, good applicability.

3. Reference Parameter

Power Supply: 380V, 50/60Hz(Can be customized)

Speed Adjustment: Frequency Converter Control

Materials: The part contacting with materials is SS304, SS316L, or SS32.

Seal: Dual End Mechanical Seal (Pressure Balance Device is optional), Packing Seal

Heating: electric heating, steam heating, hot water heating, heat transfer oil circulation heating etc.

Height Adjustment: Single Pole Hydraulic Lifting, Two Poles Hydraulic LiftingMain

4. Features

a.Various agitator types: Anchor agitator with scraper, Anchor agitator with three blade, High-speed dispersion disc, High-shear emulsifier, screw agitator, multi-layers impeller etc.. The agitators can be designed according to the property of the materials and the requirements of the production technology.

b.The top cover lifts together with the lifting stand. The connection between the cover and the container is through flange. The container is with bottom dished end. It adopts mechanical seal and is suitable for vacuum and pressurized working condition.
c.The mixing kettle can be with jacket or limpet coil for cooling or heating.
d.Easy maintenance and all the part contacting with materials is mirror polished for easy clean.

Remarks:

*The above listed Max. processing capacity is calculated as per water as medium. The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.

*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.

*The above data and picture is subject to change without notice. The accurate parameter should be subject to the object.

*Not all products are listed. For more, please contact with our sales engineer.

Custom designs are also available
