7/16" inch set screw shaft collar with zinc plated

FOB Price

USD $0.25 - $0.25 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Shaft Collar with znic plated:

Set Screw Collar Specification
Steel Collar	Bore(inch)	OD(inch)	Width(inch)	Set Screw
SC-3-F	0.1875	7/16	0.25	#8-32X1/8
SC-4-F	0.25	1/2	0.281	#8-32X1/8
SC-5-F	0.3125	5/8	0.344	#10-32X5/32
SC-6-F	0.375	3/4	0.375	1/4-20X3/16
SC-7-F	0.4375	7/8	0.438	1/4-20X1/4
SC-8-F	0.5	1	0.438	1/4-20X1/4
SC-9-F	0.5625	1	0.438	1/4-20X1/4
SC-10-F	0.625	1 1/8	0.5	5/16-18X1/4
SC-11-F	0.6875	1 1/4	0.563	5/16-18X1/4
SC-12-F	0.75	1 1/4	0.563	5/16-18X1/4
SC-13-F	0.8125	1 5/16	0.563	5/16-18X1/4
SC-14-F	0.875	1 1/2	0.563	5/16-18X5/16
SC-15-F	0.9375	1 5/8	0.563	5/16-18X5/16
SC-16-F	1	1 5/8	0.625	5/16-18X5/16
SC-17-F	1.0625	1 3/4	0.625	5/16-18X5/16
SC-18-F	1.125	1 3/4	0.625	5/16-18X5/16
SC-19-F	1.1875	2	0.688	3/8-16X3/8
SC-20-F	1.25	2	0.688	3/8-16X3/8
SC-21-F	1.3125	2 1/8	0.688	3/8-16X3/8
SC-22-F	1.375	2 1/8	0.75	3/8-16X3/8
SC-23-F	1.4375	2 1/4	0.75	3/8-16X3/8
SC-24-F	1.5	2 1/4	0.75	3/8-16X3/8
SC-26-F	1.625	2 1/2	0.813	3/8-16X3/8
SC-28-F	1.75	2 3/4	0.875	1/2-13X1/2
SC-31-F	1.9375	3	0.875	1/2-13X1/2
SC-32-F	2	3	0.875	1/2-13X1/2
SC-33-F	2.0625	3	0.875	1/2-13X1/2
SC-34-F	2.125	3	0.875	1/2-13X1/2
SC-35-F	2.1875	3 1/4	0.938	1/2-13X1/2
SC-36-F	2.25	3 1/4	0.938	1/2-13X1/2
SC-38-F	2.375	3 1/4	0.938	1/2-13X1/2
SC-39-F	2.4375	3 1/2	1	1/2-13X1/2
SC-40-F	2.5	3 1/2	1	1/2-13X1/2
SC-44-F	2.75	4	1.125	1/2-13X5/8
SC-47-F	2.9375	4 1/4	1.125	1/2-13X5/8
SC-48-F	3	4 1/4	1.125	1/2-13X5/8
SC-55-F	3.4375	4 3/4	1.125	1/2-13X5/8
SC-56-F	3.5	4 3/4	1.125	1/2-13X5/8
SC-63-F	3.9375	5 1/4	1.125	1/2-13X5/8
SC-64-F	4	5 1/4	1.125	1/2-13X5/8

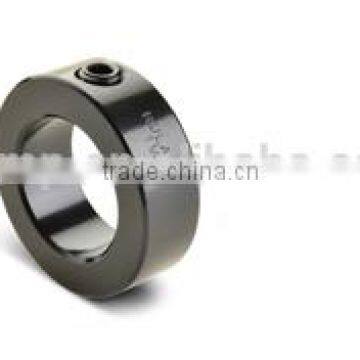

Product show:

Inspection:

In our factory , we only use Mitutoyo to inspect!!!

Raw Material:

20 years OEM shaft set collor, we choose the best seamless tube as raw material.

With 300 tons various of seamless tube in stock, we can meet you most request of shaft collar and sleeve bushing.

Equipment List:

No	Equipment Name	Quantity In Useing
1	25Ton Stamping Machine( World)	3
2	45Ton Stamping Machine( World)	3
3	60Ton Stamping Machine( World)	1
4	80Ton Stamping Machine( World)	1
5	16Ton Stamping Machine( World)	4
6	10Ton Stamping Machine( World)	3
7	250Ton Stamping Machine( World)	1
8	35Ton Precision Stamping Machine( SEYI)	13
9	45Ton Precision Stamping Machine( SEYI)	3
10	110Ton Precision Stamping Machine( SEYI)	2
11	160Ton Precision Stamping Machine( SEYI)	2
12	YF32-100 four column universal hydraulic press	2
13	CK6136S CNC lathe	25
14	C0625 instrument lathe	15
15	MT1050A centerless grinder	8
16	2512B drilling machine	8
17	WC67Y-100/3200 hydraulic bending machine	1
18	GZ4232 NC saw machine	2
19	3mm steel plate shearer	1
20	CNC pipe cutter	8
21	welding manipulator (Panasonic)	1

Seeing is Believing , welcome to visit our factory
