Product Details
| Type | Pathological Analysis Equipments | Brand Name | Foinoe | |
| Place of Origin | Jiangsu, China | Model Number | 3303G |
Product Description

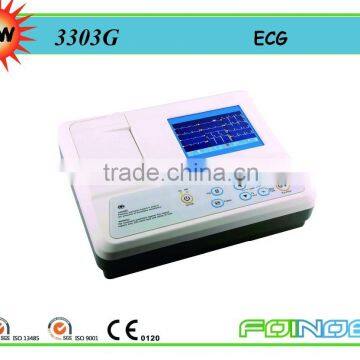

Model:3303G vet ecg machine china
Features
1.Accurate pulse pace identification and automatic analysis function
2.Working modes: Manual / Auto / Analysis/Storage
3. 80mm, 3 channel format recording
4.800×480 graphic 5 inch color LCD
5. 12 leads synchronously acquisition and display
6.100 patient cases save and replay (extendable)
7.Advanced [Freeze] function
8. Adapt to 110-230V, 50/60Hz power supply
9.Built-in rechargeable Ni-MH battery
10. High resolution thermal printing
11. USB/RS232 interface, ECG software is optional
12. Can be connected to Network, USB Disk, Printer and Code Scanner (Optional)
Technical Specification
Lead | Standard 12 leads | Time constant | ≥3.2s |
lead acquisition | 12bit/1000Hz(synchronously 12 leads) | Frequency response | 0.05~160Hz(-3db) |
Work mode | 22 Series:Man / Auto/Analysis 33 Series: Man / Auto/ Analysis/Storage | Noise level | <15μVp-p |
Filter | AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) | Inter-channel Interference | ≤0.5mm |
CMMR | ≥100dB (with AC FILTER) | Sensitivity | 5,10,20, 40, Auto (mm/mV) |
Input circuit | Floating; Protection circuit against Defibrillator effect | Recording mode | 3ch, 3ch+ Default Man. Mode is 3ch format Default Auto. Mode is 3ch+ format |
Input Impedance | ≥50MΩ | Paper speed | 6.25,12.5,25,50mm/s(±3%) |
Input circuit current | ≤0.05μA | Paper | 80mm *20m Roll paper |
Patient current leakage | <10μA | Communication | RS232/ USB port |
Calibrating voltage | 1mV±2% | Power Supply | AC 110-230V(±10%),50/60Hz(±1Hz), 60VA DC Built-in rechargeable battery, 14.4V(2000mmAh) |
Voltage tolerance | ≥±500mV | Dimension/Weight | 285mm×265mm×72mm/2.8Kg |
ECG Interface
ECG Interface
Features:
a. Real time synchronously acquisition through USB port
b. Electrocardialvector and Timed Vectorcardiograph analysis
c. Electrocardiograph auto-measurement and analysis
d. Available for normal A4 Paper
e. Multi-printing modes,networked cases management
f. Support communication with Rs232,convenient for clinical use.
ECG Software
Electrocardialv
A. FRANK 3 Lead electrocardialvector
B.Can choose instantaneous stroke vector and average vector
C. Demonstrate and replay electrocardialvector movement locus
12 leads auto-interpretation
A.Standard 12 leads auto-interpretation
B.Use-defined lead mode
C. Function of measurement, scan and analysis each lead’s ST segment
Networked cases management
A.Search with any condition
B.Function of statistics
C.Out-put WORD/DICOM format document
D.Convenient to be collected to hospital’s HIS/PACS system
Other models for choice:
Model:3301G
Model:3303B
Model:3306G
