Good price label machine /manual labeling printer Mechanism
US$ 20 - 50
/ Set
12 Sets(Min. Order)
- Shanghai
- T/T
You May Like
-
Sticker label machine/clothing label front receipt Mechanism
-
Commercial packaging label printer/textile front receipt Mechanism
-
Small label printing machine/innovative mechanical kiosk product Mechanism
-
Rotating mechanic working models Auto Cutter Mechanisms
-
SINMARK SK-908 L50300(50mmX300m) thermal transfer ribbon
-
SINMARK 60mmX300m eco-friendly design thermal wax resin ribbon TTR ribbon
Product Details
| Products Status | Stock | Type | Other, Label Printer Mechanism | |
| Style | Black And White | Use | Barcode Printer | |
| Interface Type | Other | Max Paper Size | 82.5mm | |
| Black Print Speed | 150mm/s | Color Print Speed | no | |
| Brand Name | SINMARK | Model Number | SID | |
| Place of Origin | Shanghai, China |
Product Description
Good price label machine /manual labeling printer Mechanism
Product Description

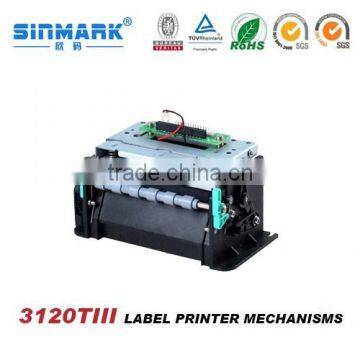

3120TIII Label Printer Mechanisms features:
- Direct thermal printing: fit for real-time and bulk barcode label printing task
- Two paper off modes: peel off and tear off modes for options
- Super high speed printing: 150mm/sec
- High resolution printing: 8dots/mm
- Long life: 150km print length or 100 million pulses
- Low noise
- Thermal head cleaning easily
- RoHS compliant
Parameters
| 3120TIII Label Printer Mechanisms specification: | ||
| Model: SID-3120TIII | ||
| Printing | Print method | Thermal dot line printing |
| Dots per line | 640dots | |
| Resolution | 8 dots/mm | |
| Maximum print speed | 150mm/sec | |
| Print width | 80mm | |
| Paper width | 25 ~ 82.5 mm max. | |
| Paper feed pitch | 0.125mm | |
| Paper path | Straight | |
| Paper type | Continuous, black mark, sticker, etc | |
| Paper off mode | Peel off and tear off | |
| Detection | Head temperature detection | Via a thermistor |
| Platen position detection | Via a mechanical switch | |
| Out-of-paper detection | Via a photo interrupter | |
| Black mark detection | Via a photo interrupter | |
| Power supply(V) | Logic power supply(VDD) | 5V |
| Heater print voltage(VH) | 24V | |
| Peak current(A) | Head | 15.03A (26.4V / 384dots) |
| Motor | 0.50A | |
| Service life | Pulse activation | 100 million pulses or more |
| Abrasion resistance(KM) | 150 km or more | |
| Operating temperature range(No condensation) | -5°C to 50°C | |
| Storage temperature range (No condensation) | -20°C to 60°C | |
| Dimensions(excluding the lever and convex part)(width x depth x height) | 128.8(W)X68.5(D)X80.6(H)mm | |
| Mass | Approx. 435g | |
| Print speed changes according to the processing speed of the controller and print pulse width.When printing equal to the print width is performed.Changing rate of average head resistance: 15% or less | ||
| * The above parameters are subject to change without prior notice. | ||
