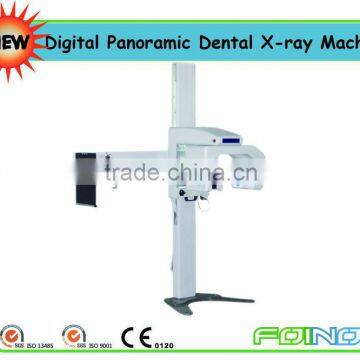

Hot!! Dental Panoramic Machines

                        Hot!!  Dental Panoramic Machines

1. It is designed on the principles of x-ray drum curvature tomography.

 2. A small focus x-ray tube is adopted only for dental. It makes the picture clearer.

 3. The unit can radiograph a complete view of curvature of the whole teeth in a picture. The picture includes sinuses, nasal sinus, maxillary, mandibular structure and he whole 32 teeth, temporal, lower jaw joint and its combined relations.

 4. It takes the unit only 16s for a rotational radiography to shoot a panoramic view of whole Dental-Maxilla-Facial region

5. An elevating motor is used in the unit, to raise or lower its gantry for radiography the people for different height.

6. It can also be used for oral surgery and facial orthopedics.

Digital Panoramic Parameters

Power Supply: 220V,50/60Hz,10A (can be adjusted as customer’s require)

Mains Resistance: <1.5ohm at 220 V

X-ray generator:High frequency dc at 20 kHz

Anodic Voltage:60-86 kV, Constant Potential   Anodic Current:4-10 mA,Direct Current

Focus size:0.5*0.5mm                     Inherent Filtration:2.5 mm Al

Column Height:230cm                    Displacement :90 cm,from 90 to 180 cm

Vertical Movement: Manual Adjustment

Patient Positioning: Manual Carriage Adjustment

Centering Light Lateral

Centering Chin rest

Reference with bite wing

Imaging Parameters of Digital Sensor ipan:

Exposure time:  19 s               0.2 to 3.5s(12 steps) mAs from 2 to 35

Projections:      Adult(19 s)         Antero Posterior

                       Children(16 s)

                       Half left(10 s)         Latero lateral

                       Half Right(10 s )       with soft tissue filter

                       Frontal Teeth(12 s)

                       TMJ opened and closed

                       Mouth(4*3.2s)

                       Frontal Sinuses(18 s)

Cooling pause:     automatically controlled,       automatically controlled,

                              6 min max                             60 s max

Cephalometric Function Parameters

(Film available)

Anodic Current: 10 MA

The Product of Anodic Current and Time is from 2mAs to 35mAs, divided into 12 block.

Size of Cassette: 18cm * 24cm

Package Information:

Items           Dimensions         G.W.

Main part:    114×83×61cm       154kg

Side arm:     232×30×34cm       68kg

Total:            222kg
