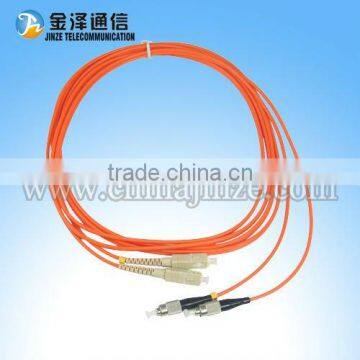

3M FC -SC Multimode Duplex Fibre Optic Patch Cord/Cable

Specifications

   3M   FC -SCMultimode Duplex Fibre Optic Patch Cord/Cable

Fiber Type : OS1  9/125  Corning fiber  Operating Wavelength: 1310 nm
 Connector Type Polishing :  SC/UPC  SC/APC  LC/UPC LC/APC D4 MU  DIN   ST/UPC   E2000/UPC  E2000/APC  SMA  ESCON MTRJ
 Fiber Cable Jacket Type: PVC /LSZH   Simplex/ Duplex   3.0mm/ 2.0mm/0.9mm
Insertion  loss  <0.20dB,
Return   loss             UPC>50 dB,  APC>60 dB
Radius of curvature      nm   10 < r >25
Curvature eccentricity  um   <50
Fiber core  undercut  nm   <50
Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion
Repetitiveness       (dB):      Insertion loss change<  0.1, Return loss change< 5
Insert & pull out    :      Max: 2KG
Tensile strength     dB   0-    10KG per minutes
Fully tested cables to ensure superior quality and durability
RoHS Compliant
Features :low insert loss; Good repeatability; Good changability; Good temperature stabilition
Mechanism Features: insert and full frequency>1000;Changability(db)<0.2 Tensile strength<0.1 Ascillating test<0.1
Condition Features: High temperature<0.2 Low temperature<0.2
Use: Applied in optical fiber communications system, fiber optic date transmission, LAN, optical fiber sensors and optical CATV.
