100M Ethernet over STM 1 Convertor
- Ethernet over STM1 convertor will be shipped from Shanghai
- T/T Credit Card PayPal
You May Like
-
China baudcom multiplexer
-
Best price Multi-service SDH/MSTP multiplexer
-
China hot selling Best price SDH/MSTP/PDH optical transmission Multi-Service Access Multiplexer
-
Factory direct Multi-service SDH/MSTP multiplexer
-
New arrival Multi-service SDH/MSTP multiplexer
-
High quality Multi-service SDH/MSTP multiplexer
Product Details
| Place of Origin | China | Brand Name | Baudcom | |
| Model Number | BD-EOS02-OO/A |
Product Description

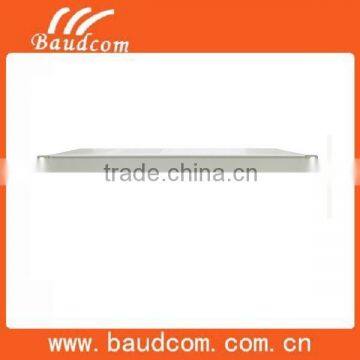

Product: 100M Ethernet over STM1 SDH Convertor
The 100M Ethernet over STM 1 SDH Convertor provides one or two SDH STM-1 optical interface, two Ethernet interfaces, and a 100M 100M Ethernet optical port, the Ethernet packets directly encapsulated to the payload of SDH, SDH transmission network through long-distance high-speed Ethernet connectivity. The 100M Ethernet over SDH Converter device has a standard STM-1 optical interface with any standard STM-1 optical interface, docking, direct access to the backbone network, or constitute a simple point to point network.
- Standard STM-1 optical interface, which provides 1 +1 protection, single fiber transmission, wavelength and light power of different interfaces and other options;
- Provides two Ethernet interfaces, and a 100M optical port, optical port can be independently Plug
- Ethernet mapping adopts GFP/VC-12 virtual concatenated technology; according with MSTP criterion;
- SNMP(10/100Base-T) network management port;
- Standard 19 inch 1 unit box;
- -48V DC or 220V AC power supply
- Substrate program on-line update supported.
Ethernet over STM1 convertorTechnical Specification:
Index | Performance Parameter | |
SDH Interface | Max | 1~2 STM-1 optical interfaces (1+1 protection supported) |
Connector | SC/PC | |
Spec. | S-1.1, L-1.1, L-1.2 | |
Single fiber bi-directional interface can be optionally supported | ||
Service interface | Ethernet port | 2´10/100Base-Tx Comply with IEEE 802.3 |
Management | Protocol | SNMP |
Interface | 10Base-T | |
Physical Dimension | 1U: 440 × 44 ×138 (mm) | |
Power | Supply | -48V DC or 220V (110V) AC or dual power supply +24VDC |
Consumption | ≤8w | |
Environment | Temperature | 0°C~50°C |
Humidity | ≤90 % | |
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
| BD-EOS-3FE-STM1 | 3 Ethernet over STM-1 converter,2*10/100M ethernet,one optical ethernet,optical STM-1 port,dual fiber,20km,power AC 220V+DC 48V |
| BD-EOS-3FE-2STM1 | 3 Ethernet over STM-1 converter,2 electrical 10/100M ethernet,one optical ethernet,two optical STM-1 port(1+1 fiber protection),dual fiber,20km,power AC 220V+DC 48V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
