1000M Single Mode Protocol Ethernet Fiber Media Converter

FOB Price

US$ 7.5 - 14.5 / Unit

2 Units(Min. Order)

Port Protocol Media Converter will ship from shanghai ningbo or any port in China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Baudcom -Protocol Media Converter
Model Number	BD-100M-BI

Product Description

Product: 1000M Fast Ethernet Fiber Media Converter with 120KM

Overview:

The Fiber Media Converter transmits10/100Base-T Ethernet electrical signal through fiber, realizing 10/100Base-T to 100Base-TX/FX ethernet converter.

Features:

*Conforms to IEEE802.3,IEEE802.3u (10Base-T,100Base-TX,100BaseT-FX) international standard;

*Support single fiber(WDM technology)

*Single-mode connection:transmitting range can reach 120 kilometers.

*Built-in power supply or built-out power supply;

*Support both 10/100M full/half duplex adapt and compulsive set 10M,100M,full duplex, half duplex, then convenient to connect CPE and protect previous invest when network upgrades;

*Brings 1M buffer, supports 2KMAC address;

*Isolates network conflict and broadcasting package effectively, has the function of preventing broadcasting storm;

*Supports 802.1Q and 16 groups of VLAN

Specification:

Fiber Connector

Fiber Connector: SC/FC
100Base-FX:FC,ST,SC connector

single-mode 8.3/125, 8.7/125, 9/125, 10/125µm,transmit distance20km~120km
multi-mode 50/125, 62.5/125, 100/140µm, transmit distance 0~2km

Ethernet Connector:

10/100Base-TX: UTP RJ45 connector

International standard: IEEE802.3 10 Base-T, IEEE802.3u 100Base-TX and 100Base-FX
Cable type: non-shielded 5 class cable Cat.5UTP, can mux transmit 100 meters

Environment Condition
Operating temperature	0°c~+50 °c
Storage temperature	-20 °c~+70 °c
Relative humidity	95% (uncondensed)

Dimension
210mm(L)140mm(D)30mm(H)
Power Supply
working voltage range wide, good anti-disturb and Isolation, work stable Power DC-48V( DC-36V~DC-72V) Power AC220V( AC160V~AC240V)
Media Convertor's Order information
BD-100M-BI-20	WDM fiber media converter, 10/100Base-T to 100Base-TX/FX ethernet converter, Single-mode 20Km
BD-100M-BI-40	WDM fiber media converter, 10/100Base-T to 100Base-TX/FX ethernet converter, Single-mode 40Km
BD-100M-BI-60	WDM fiber media converter, 10/100Base-T to 100Base-TX/FX ethernet converter, Single-mode 60Km
BD-100M-BI-80	WDM fiber media converter, 10/100Base-T to 100Base-TX/FX ethernet converter

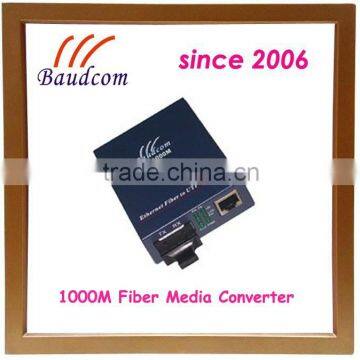

Fiber Media Converter Picture:

Fiber Media Converter Application Diagram:

Certification:
