Managed Chassis fiber to lan converter
- fiber to lan converter be shipped from Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
100M single mode fiber optical media converter
-
1000M Single mode Protocol Ethernet Fiber Media Converter
-
unmanaged Chassis rack mount media converter
-
China Wholesale gigabit SFP optic media converter ,China Supplier gigabit sfp optic media converter
-
high stability 100M single fiber single mode fiber media converter
-
1000M POE(PSE) Media Converter
Product Details
| Place of Origin | Shanghai, China | Brand Name | baudcom-fiber to lan converter | |
| Model Number | BD03 |
Product Description
Product: Managed Chassis fiber to lan converter
Overview:
SNMP Managed Chassis:
SNMP managed Rack mount converter BD03, full configuration consists of 1 SNMP card+16 function card+2 power supply module (redundant). Support our media converter series, making centrally located SNMP managed chassis
Model name: BD03/ SNMP managed Rack mount converter
product function: Suports all kinds converter card
Features:
- installed with standard rack 19"
- It could realize media converter SNMP management. This is media converter module model name as BD03-card and SNMP module as BD03-card-NM
- can insert 16 function BD03-card , 1 SNMP module and 2 slots at back panel, support free combination of AC+DC redundant
- support of SNMP via Management Ethernet port, remote management support of Web-based Network Management
- Hot Swappable (Power supply, MC module)
- Power supply: used with 220 VAC 50 Hz, 2 units
- one module can supplied to chassis, fully equip
- have 2 Fans to radiate heat
Parameter:
| Parameter | Specifications |
| Number of slots | 17 |
| Structure | 2U rack |
| Power input | AC Voltage: AC 85~265V; frequency: 50/60 Hz |
| DC voltage: DC -36~72V | |
| Power output | DC5V 16A |
| Power configuration | Single power supply, or dual power supply for warm backup mode |
| LED indication | POWER (power supply) |
| Max power consumption | 95W |
| Operating temperature | -10~55iC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70iC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions of rack | 112mm (H) * 368mm (W) * 430mm (D) |
Order information:
BD03/AC+AC | BD03 chasis with two AC power | |
BD03/DC+DC | BD03 chasis with two DC power | |
BD03/AC+DC | BD03 chasis with AC+DC power | |
BD03/AC | BD03 chasis with AC power | |
BD03/DC | BD03 chasis with DC power | |
Operated at 0-50 degree
Dimension:
430(L) X 368(W) X 112(H) mm

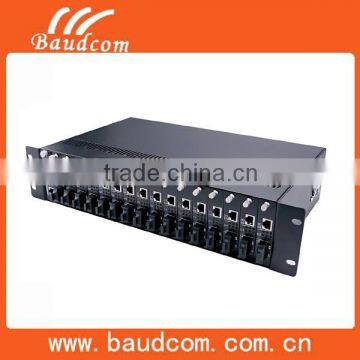

chassis media converter picture:
Certificates
Factory picture:
