Home > Products > Switching power supply > 13.8v 4400ma 18.5v 3333ma power supply 60w power adapter for audio intercoms with SAA approval Supplier's Choice
13.8v 4400ma 18.5v 3333ma power supply 60w power adapter for audio intercoms with SAA approval Supplier's Choice
- Shenzhen
You May Like
-
UL,CE,FCC,GS,SAA,PSE,CEC VI Level 12V 1.5A pulse power supply transformer switching for led light US/EU/AU/UK plug Supplier's Choice
-
24v 2a Power Adapter Good Quality desktop power Adapter With Safety Certificates/CE UL ROSH
-
Factory Compatitive Price 12V 1A power adapter, AC DC Power Supply with EU US AU Supplier's Choice
-
Switching power supply 29V 2A ac dc adapter 58W for electric scooter motor with UL, PSE certificates Supplier's Choice
-
Good reputation at low price 24v 4a desktop power adapter
-
high quality switching power adapter15v 3a for electronic equipment with SAA cert
Product Details
Place of Origin | Guangdong, China | Brand Name | LYD | |
Model Number | LYD1384400 | Output Power | 51 - 100W | |
Input Voltage | Other, AC100-240V 50/60Hz | Output Voltage | 13.8-18.5V | |
Output Frequency | 47-63HZ | Output Current | 3.3-4.4A |
Product Description

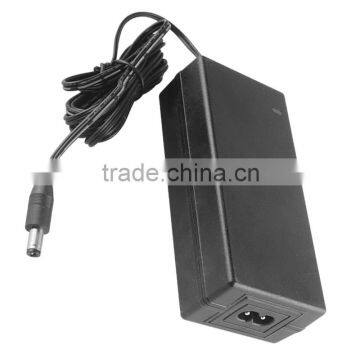

13.8v 4400ma 18.5v 3333ma power supply 60w power adapter for audio intercoms with SAA approval
Oupt power range | 13.8V 4.4A 16V3.5A 18.5V3.333A (also have those models for selection) |
The adapter size | 123*55*35mm |
The adapter weight | 360g/pcs |
Input Rated Voltage | 100Vac~240Vac |
Input Frequency Range | 50Hz~60Hz |
Input Current | less than 0.5A |
Input Inrush Current | less than 50A |
Efficiency | 80%(MIN)at Rated Voltage |
DC Output Voltage | 13.8V± 5% (option) |
DC Output Current | 4.4A (option) |
DC Output Power | 60w (optional) |
Leakage Current | less than 5mA |
Standby power | less than 0.5w |
DC connector | 5.5*2.1*10mm (optional) |
DC cable | 1.5m 2464UL 20AWG cable (optional) |
Ripple and Noise | less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time | less than 3S (AC:110V and full load) |
Certificates | CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310 |
Dielectric Voltage | A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection | output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature | -10°C - +45°C |
Storage Temperature | -20°C - +40°C |
Safety Standard | EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
1. Used TDK, ST, ON, Rubycon, IR, Toshiba imported materials.
2. 100% of full load burn-in test through the long period of time, effectively guarantee the stability of product quality.
3. Product has overvoltage, overcurrent, overload, under voltage, over temperature protection function.
4. Strong R&D team.
5. The stability of the international quality.
6. The one and only design.
7. All products have passed the UL, cUL, TUV/GS, PSE, SAA, C-Tick, CE, FCC, CB, KC, RoHS certification; the factory passed ISO9001 quality system certification, and has dozens of patents.
Q1. What are the main products in your company?
A1: Our main products include switching power supply, power adapters, battery chargers.
Q2. Can you supply OEM or ODM service?
A2: We can supply OEM/ODM service of any charger or power adapter absolutely!
Q3. Which shipment available?
A3: Normally, we ship goods by sea,air and express. Special requirement also acceptable
Q4. Do you inspect the finished products?
A4: Yes. Each product is 200% tested and inspected before package.
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
